TWIN WALL AIR GAP FLUE: ADW10
Twin wall flue with air gap flue system in stainless steel internal AISI 316L external AISI 304 - 10 mm gap
The ADW10 air twin wall flue system is made up of rigid modular components with a BA polished finish, manufactured with an internal wall in austenitic stainless steel AISI 316L BA (EN 1.4404) with a minimum thickness of 0.4 mm and an external wall in austenitic stainless steel AISI 304 BA (EN 1.4301) with a thickness of 0.4 mm, compliant with the CE marking according to the EN 1856/1-2 European standard. The insulation is made with a 10 mm thick static “air gap”. The modular components have a classic male-female socket coupling calibrated for both walls with a triple lip seal to be inserted on the internal wall, and mechanical joint with safety band. All compliant with European standard EN 14241-1.
DESIGNATIONS OF USE
|
CONDENSATION RESISTANT
|
YES |
|
|
INTERNAL WALL
|
AISI 316L | |
|
OUTER WALL
|
AISI 304L |
|
|
INSULATION
|
Air gap |
|
|
INSULATION THICKNESS
|
10 mm |
|
|
DIAMETERS
|
⌀ 60 ÷ 230 |
|
|
TEMPERATURE LEVEL
|
200 °C
|
|
|
PRESSURE LEVEL
|
P1 = 200 Pa
|
|
 |
GAS APPLIANCES
|
RECOMMENDED
|
 |
GAS CONDENSING APPLIANCES
|
RECOMMENDED
|
 |
OIL APPLIANCES
|
RECOMMENDED
|
 |
WOOD-BURNING APPLIANCES
|
NO
|
 |
PELLET APPLIANCES
|
RECOMMENDED
|
 |
GAS COOKER HOODS
|
POSSIBLE
|
|
VENTILATION
|
POSSIBLE
|
 |
OUTDOOR INSTALLATION
|
RECOMMENDED
|
 |
INDOOR INSTALLATION
|
RECOMMENDED
|
 |
INSTALLATION IN CAVITY
|
RECOMMENDED
|
|
CONDENSATION RESISTANT
|
YES |
|
|
INTERNAL WALL
|
AISI 316L | |
|
OUTER WALL
|
AISI 304L |
|
|
INSULATION
|
Air gap |
|
|
INSULATION THICKNESS
|
10 mm |
|
|
DIAMETERS
|
⌀ 60 ÷ 230 |
|
|
TEMPERATURE LEVEL
|
600 °C
|
|
|
PRESSURE LEVEL
|
N1 = 40 Pa
|
|
|
GAS APPLIANCES
|
RECOMMENDED
|
|
GAS CONDENSING APPLIANCES
|
RECOMMENDED
|
|
OIL APPLIANCES
|
RECOMMENDED
|
|
WOOD-BURNING APPLIANCES
|
NO
|
|
PELLET APPLIANCES
|
RECOMMENDED
|
|
GAS COOKER HOODS
|
POSSIBLE
|
|
VENTILATION
|
POSSIBLE
|
|
OUTDOOR INSTALLATION
|
RECOMMENDED
|
|
INDOOR INSTALLATION
|
RECOMMENDED
|
|
INSTALLATION IN CAVITY
|
RECOMMENDED
|
Usual reference and designation
Product marking according to European legislation: CE 0476 EN 1856-1 / EN 1856-2.
T200 P1 W V2 L50040* O 20 with gasket
T600 N1 W V2 L50040 G500 M

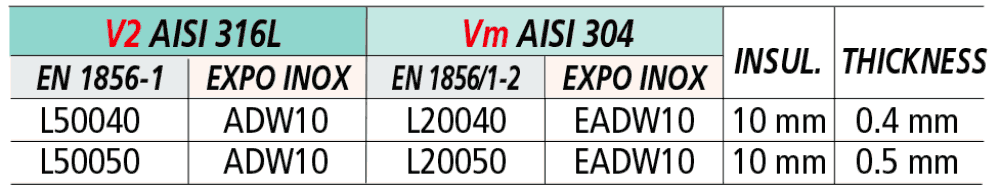

* The designation may vary according to the quality and thickness of the raw material as indicated in the table below:
Usage
Masonry Chimneys, flue ducts, steel flue, air vents serving atmospheric, pressurised, blown air, traditional or condensing heat generators, kitchen hoods for industrial or domestic use, pellet stoves.
Application
Indoor or outdoor installation
Available diameters - mm
60/80 (ON REQUEST) - 80/100 - 100/120 - 130/150 - 160/180 - 180/200 - 200/220 - 230/250 (ON REQUEST)
Diameter 250/270 available on request.
