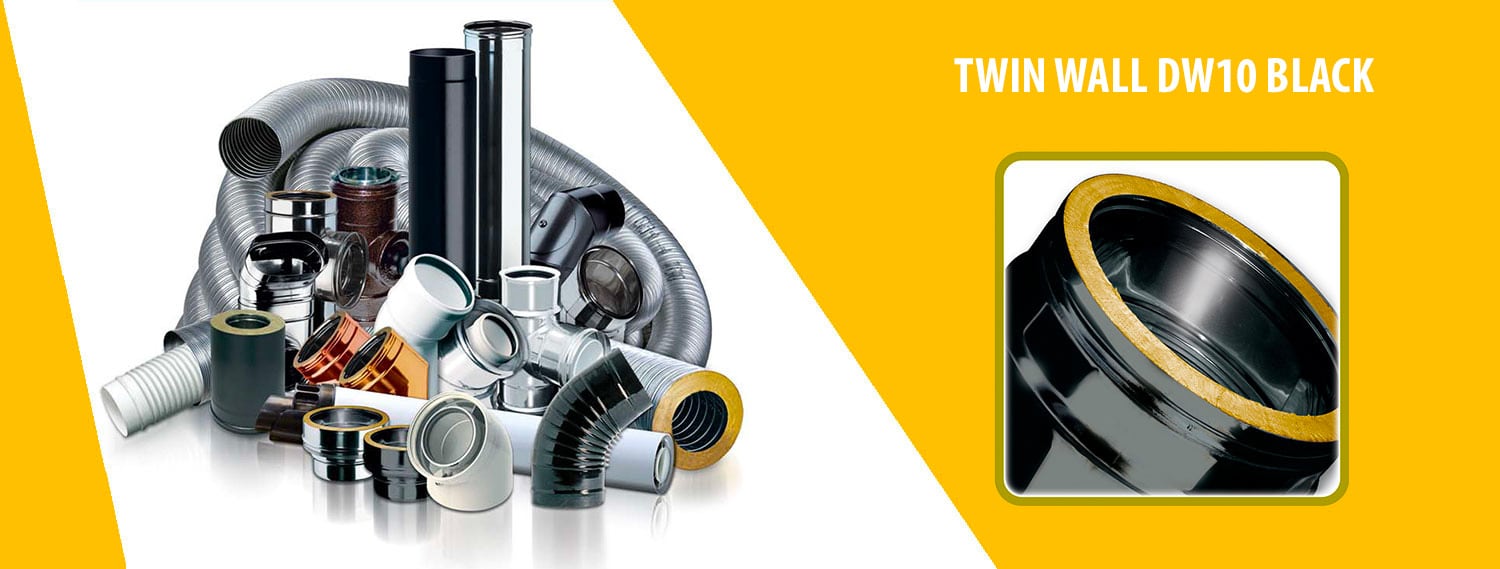

TWIN WALL: DW10 BLACK

Twin wall flue system internal AISI 316L external AISI 304 black - rockwool insulation 10 mm thick

The DW10 BLACK twin wall flue system is made up of rigid modular components with a BA glossy finish, manufactured with an internal wall in AISI 316L stainless steel with a minimum thickness of 0.4 mm and an external wall in black painted AISI 304 stainless steel, compliant with CE mark to EN 1856/1. The insulation is 10 mm thick high-density rockwool, inserted between the walls without joining elements between them (thermal bridge). The modular components have a classic male-female socket coupling calibrated for both walls with a triple lip seal to be inserted on the internal wall, and a mechanical joint with a safety clamp compliant with European standard EN 14241-1

DESIGNATIONS OF USE

Click on the designation to find out the related usage specifications
Designation T200 P1 W V2 L50040 O20 (system 200 Pa sealing with gasket)
CONDENSATION RESISTANT

YES

INTERNAL WALL
AISI 316L
OUTER WALL

AISI 304L

INSULATION

Rock wool

INSULATION THICKNESS

10 mm

DIAMETERS

⌀ 80 ÷ 100

TEMPERATURE LEVEL
200 °C  
PRESSURE LEVEL
P1 = 200 Pa
GAS APPLIANCES
RECOMMENDED
GAS CONDENSING APPLIANCES
RECOMMENDED
OIL APPLIANCES
RECOMMENDED
WOOD-BURNING APPLIANCES
NO
PELLET APPLIANCES
RECOMMENDED
GAS COOKER HOODS
POSSIBLE
VENTILATION
POSSIBLE
OUTDOOR INSTALLATION
RECOMMENDED
INDOOR INSTALLATION
RECOMMENDED
INSTALLATION IN CAVITY
RECOMMENDED
Designation T600 N1 W V2 L50040 G500M (vacuum flue)
CONDENSATION RESISTANT

YES

INTERNAL WALL
AISI 316L
OUTER WALL

AISI 304L

INSULATION

Rock wool

INSULATION THICKNESS

10 mm

DIAMETERS

⌀ 80 ÷ 100

TEMPERATURE LEVEL
600 °C
PRESSURE LEVEL
N1 = 40 Pa
GAS APPLIANCES
RECOMMENDED
GAS CONDENSING APPLIANCES
RECOMMENDED
OIL APPLIANCES
RECOMMENDED
WOOD-BURNING APPLIANCES
NO
PELLET APPLIANCES
RECOMMENDED
GAS COOKER HOODS
POSSIBLE
VENTILATION
POSSIBLE
OUTDOOR INSTALLATION
RECOMMENDED
INDOOR INSTALLATION
RECOMMENDED
INSTALLATION IN CAVITY
RECOMMENDED

Usual reference and designation

Product marking according to European legislation: CE 0476 EN 1856-1 / EN 1856-2.
T200 P1 W V2 L50040* O 20 with gasket
T600 N1 W V2 L50040 G500 M

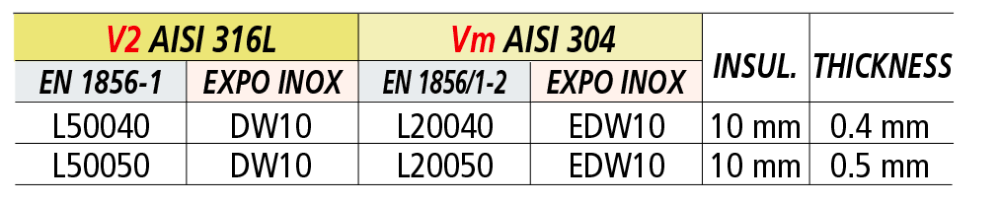

* The designation may vary according to the quality and thickness of the raw material as indicated in the table below:

Usage

Masonry Chimney, flue ducts, steel chimneys, air vents serving atmospheric, pressurised, blown air, traditional or condensing heat generators, kitchen hoods for industrial or domestic use, wood stoves, fireplaces, pellet stoves.

Application

Indoor or outdoor installation

Available diameters - mm (on request)

80/100 - 100/120
