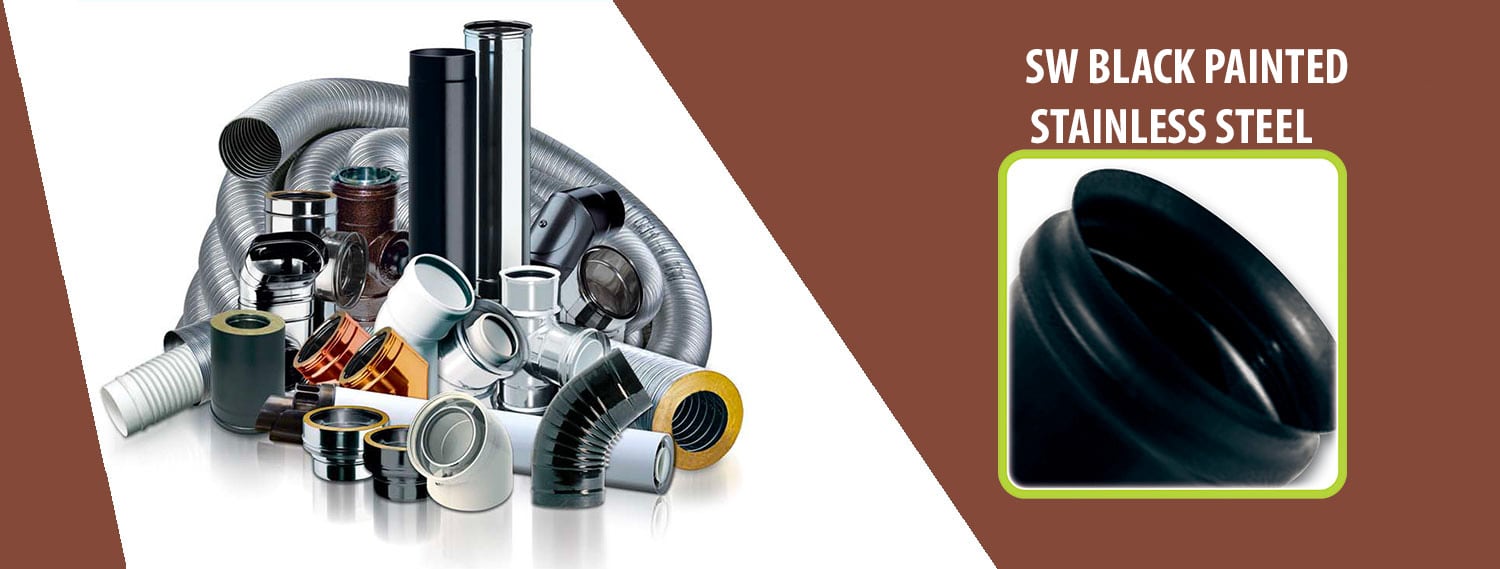

BIOMASS: SW BLACK PAINTED STAINLESS STEEL

Flue system for pellet stoves in matt black painted stainless steel

The SW BLACK single-wall flue system is made up of rigid modular components, manufactured in AISI 316L stainless steel with a minimum thickness of 0.4 mm and painted with paint resistant up to 550 °C, compliant with CE marking according to the EN 1856-1 European standard. The modular components have a classic calibrated male-female socket coupling with triple lip sealing gasket, to be used only with temperatures not exceeding 450 °C and positive pressures up to 200 Pa, and a mechanical safety band. Compliant with European standard EN 14241-1.

DESIGNATIONS OF USE

Click on the designation to find out the related usage specifications
Designation T200 P1 W V2 L50040 O60 (system 200 Pa sealing with gasket)
CONDENSATION RESISTANT
YES
INTERNAL WALL

AISI 316L

DIAMETERS

⌀ 80 ÷ 100

TEMPERATURE LEVEL
200 °C  
PRESSURE LEVEL
P1 = 200 Pa
GAS APPLIANCES
NO
GAS CONDENSING APPLIANCES
NO
OIL APPLIANCES
NO
WOOD-BURNING APPLIANCES
NO
PELLET APPLIANCES
RECOMMENDED
GAS COOKER HOODS
NO
VENTILATION
POSSIBLE
OUTDOOR INSTALLATION
NO
INDOOR INSTALLATION
RECOMMENDED
INSTALLATION IN CAVITY
POSSIBLE
Designation T450 N1 W V2 L50040 G800M (vacuum flue)
CONDENSATION RESISTANT
YES
INTERNAL WALL

AISI 316L

DIAMETERS

⌀ 80 ÷ 100

TEMPERATURE LEVEL
600 °C  
PRESSURE LEVEL
N1 = 40 Pa
GAS APPLIANCES
NO
GAS CONDENSING APPLIANCES
NO
OIL APPLIANCES
NO
WOOD-BURNING APPLIANCES
NO
PELLET APPLIANCES
RECOMMENDED
GAS COOKER HOODS
NO
VENTILATION
NO
OUTDOOR INSTALLATION
NO
INDOOR INSTALLATION
RECOMMENDED
INSTALLATION IN CAVITY
POSSIBLE

Usual reference and designation

Product marking according to European regulation CE EN 1856-1 / EN 1856-2.
T200 P1 W V2 L50040 O 60
T450 N1 W V2 L50040 G
T450 N1 W V2 L50040 G 800M

Usage

Masonry Chimneys, flue ducts, steel chimneys, air vents serving atmospheric, pressurised, blown air, traditional or condensing heat generators, kitchen hoods for industrial and domestic use, pellet stoves.

Application

Internal installation.

Available diameters - mm

80 - 100
Silicone gasket included and fitted.
