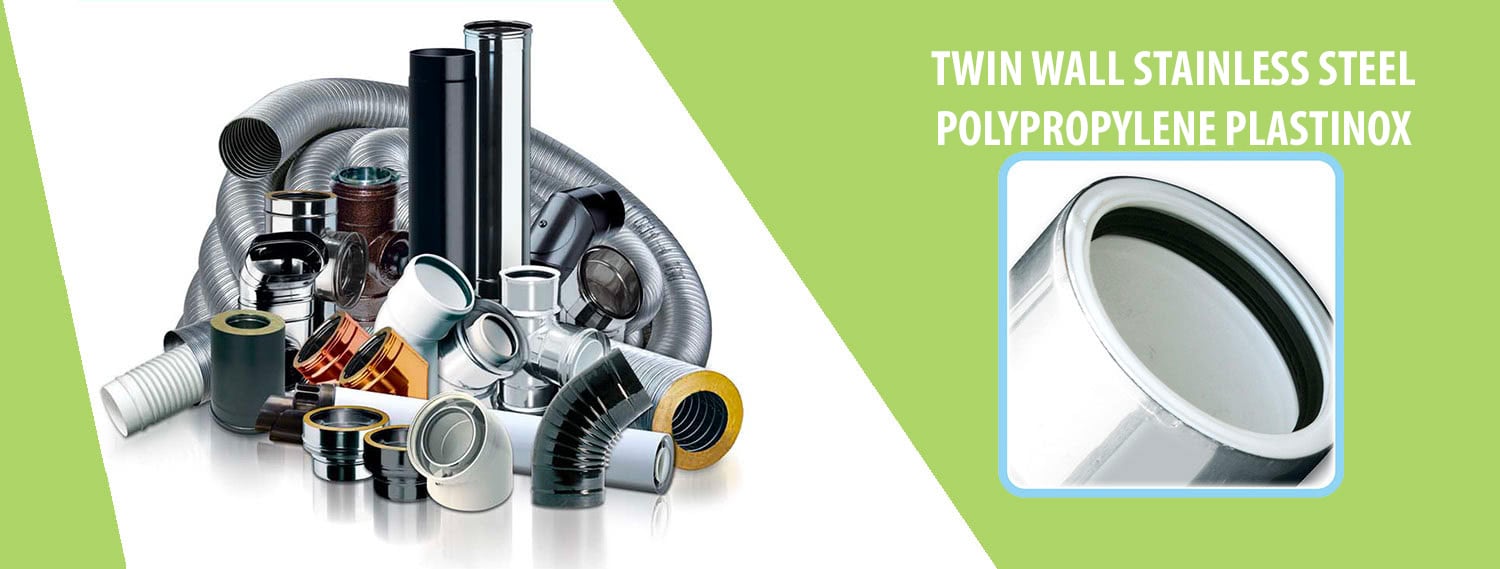

TWIN WALL: STAINLESS STEEL POLYPROPYLENE PLASTINOX
Twin wall flue system with air gap in stainless steel internal AISI 316L external AISI 304 - 10 mm gap
The PPs-inox PLASTINOX twin wall flue system is made up of rigid modular components, manufactured in enriched polypropylene with a minimum thickness of 1.5 mm and protected by an external wall in AISI 304 stainless steel with a 0.4 mm thick BA glossy finish, compliant CE marking according to the EN 14471 European standards. The modular components have a classic calibrated male-female socket coupling with triple lip seal, compliant with European standard EN 14241-1. The system is suitable for extracting flue gases with a maximum operating temperature of up to 120 °C and a maximum pressure of 200 Pa.
DESIGNATIONS OF USE
CONDENSATION RESISTANT
|
YES |
|
INTERNAL WALL
|
PP | |
OUTER WALL
|
AISI 304L |
|
INSULATION
|
Air gap |
|
INSULATION THICKNESS
|
10 mm |
|
DIAMETERS
|
⌀ 60 ÷ 100 |
|
TEMPERATURE LEVEL
|
120 °C
|
|
PRESSURE LEVEL
|
H1 = 5000 Pa
|
|
![]() |
GAS APPLIANCES
|
NO
|
![]() |
GAS / DIESEL CONDENSING APPLIANCES
|
RECOMMENDED
|
![]() |
OIL APPLIANCES
|
NO
|
![]() |
WOOD-BURNING APPLIANCES
|
NO
|
![]() |
PELLET APPLIANCES
|
NO
|
![]() |
GAS COOKER HOODS
|
POSSIBLE
|
![]() |
VENTILATION
|
POSSIBLE
|
![]() |
OUTDOOR INSTALLATION
|
RECOMMENDED
|
![]() |
INDOOR INSTALLATION
|
POSSIBLE
|
![]() |
INSTALLATION IN CAVITY
|
POSSIBLE
|
CONDENSATION RESISTANT
|
YES |
|
INTERNAL WALL
|
PP | |
OUTER WALL
|
AISI 304L |
|
INSULATION
|
Air gap |
|
INSULATION THICKNESS
|
10 mm |
|
DIAMETERS
|
⌀ 60 ÷ 100 |
|
TEMPERATURE LEVEL
|
120 °C
|
|
PRESSURE LEVEL
|
P1 = 200 Pa
|
|
![]() |
GAS APPLIANCES
|
NO
|
![]() |
GAS / DIESEL CONDENSING APPLIANCES
|
RECOMMENDED
|
![]() |
OIL APPLIANCES
|
NO
|
![]() |
WOOD-BURNING APPLIANCES
|
NO
|
![]() |
PELLET APPLIANCES
|
NO
|
![]() |
GAS COOKER HOODS
|
POSSIBLE
|
![]() |
VENTILATION
|
POSSIBLE
|
![]() |
OUTDOOR INSTALLATION
|
RECOMMENDED
|
![]() |
INDOOR INSTALLATION
|
POSSIBLE
|
![]() |
INSTALLATION IN CAVITY
|
POSSIBLE
|
Usual reference and designation
Product marking according to European standard CE 0476 EN 14471.
T120 P1 W 2 O00 LE E UO
T120 H1 W 2 O00 LE E UO
Usage
Flue system and plastic flue serving condensing generators, kitchen hoods for domestic use.
Application
Indoor or outdoor installation.
Available diameters - mm
60/80 (ON REQUEST) - 80/100 - 100/120
EPDM gasket included and mounted.
