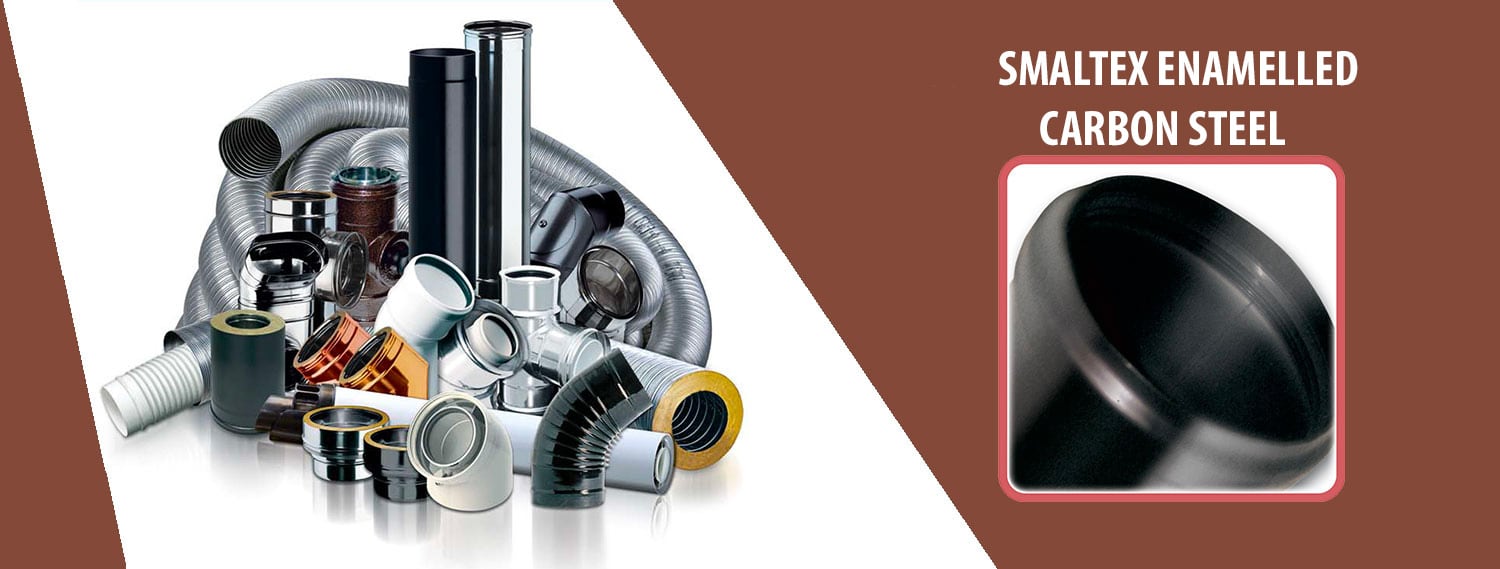

BIOMASS: SMALTEX ENAMELLED CARBON STEEL
Flue system for pellet stoves in enamelled carbon steel - thickness 0.8 mm
The SMALTEX single-wall flue system is made up of rigid modular components, manufactured in black enamelled carbon steel with a thickness of 0.5 mm - 0.8 mm, compliant with CE marking according to the EN 1856-2 standard. The modular components have a classic male-female socket coupling calibrated with triple lip sealing gasket, to be used only with temperatures not exceeding 200 °C and positive pressures up to 200 Pa, and junction mechanics with simple coupling. All compliant with European standard EN 14241-1.
DESIGNATIONS OF USE
CONDENSATION RESISTANT
|
YES |
|
INTERNAL WALL
|
Enamelled |
|
DIAMETERS
|
⌀ 80 ÷ 100 |
|
TEMPERATURE LEVEL
|
200 °C
|
|
PRESSURE LEVEL
|
P1 = 200 Pa
|
|
![]() |
GAS APPLIANCES
|
NO
|
![]() |
GAS CONDENSING APPLIANCES
|
NO
|
![]() |
OIL APPLIANCES
|
NO
|
![]() |
WOOD-BURNING APPLIANCES
|
NO
|
![]() |
PELLET APPLIANCES
|
RECOMMENDED
|
![]() |
GAS COOKER HOODS
|
NO
|
![]() |
VENTILATION
|
POSSIBLE
|
![]() |
OUTDOOR INSTALLATION
|
NO
|
![]() |
INDOOR INSTALLATION
|
RECOMMENDED
|
![]() |
INSTALLATION IN CAVITY
|
POSSIBLE
|
CONDENSATION RESISTANT
|
YES |
|
INTERNAL WALL
|
Enamelled |
|
DIAMETERS
|
⌀ 80 ÷ 100 |
|
TEMPERATURE LEVEL
|
600 °C
|
|
PRESSURE LEVEL
|
N1 = 40 Pa
|
|
![]() |
GAS APPLIANCES
|
NO |
![]() |
GAS CONDENSING APPLIANCES
|
NO
|
![]() |
OIL APPLIANCES
|
NO
|
![]() |
WOOD-BURNING APPLIANCES
|
NO
|
![]() |
PELLET APPLIANCES
|
RECOMMENDED
|
![]() |
GAS COOKER HOODS
|
NO
|
![]() |
VENTILATION
|
POSSIBLE
|
![]() |
OUTDOOR INSTALLATION
|
NO
|
![]() |
INDOOR INSTALLATION
|
RECOMMENDED
|
![]() |
INSTALLATION IN CAVITY
|
POSSIBLE
|
Usual reference and designation
CE product marking according to European standard EN 1856-2.
T200 P1 W V2 L80080 030 M
T600 N1 W V2 L80080 G375 NM
Usage
Masonry Chimneys, flue ducts, steel chimneys, air vents serving heat generators such as pellet stoves, biofuels and the like.
Application
Internal installation.
Available diameters - mm
80 - 100
Silicone gasket included and fitted.
