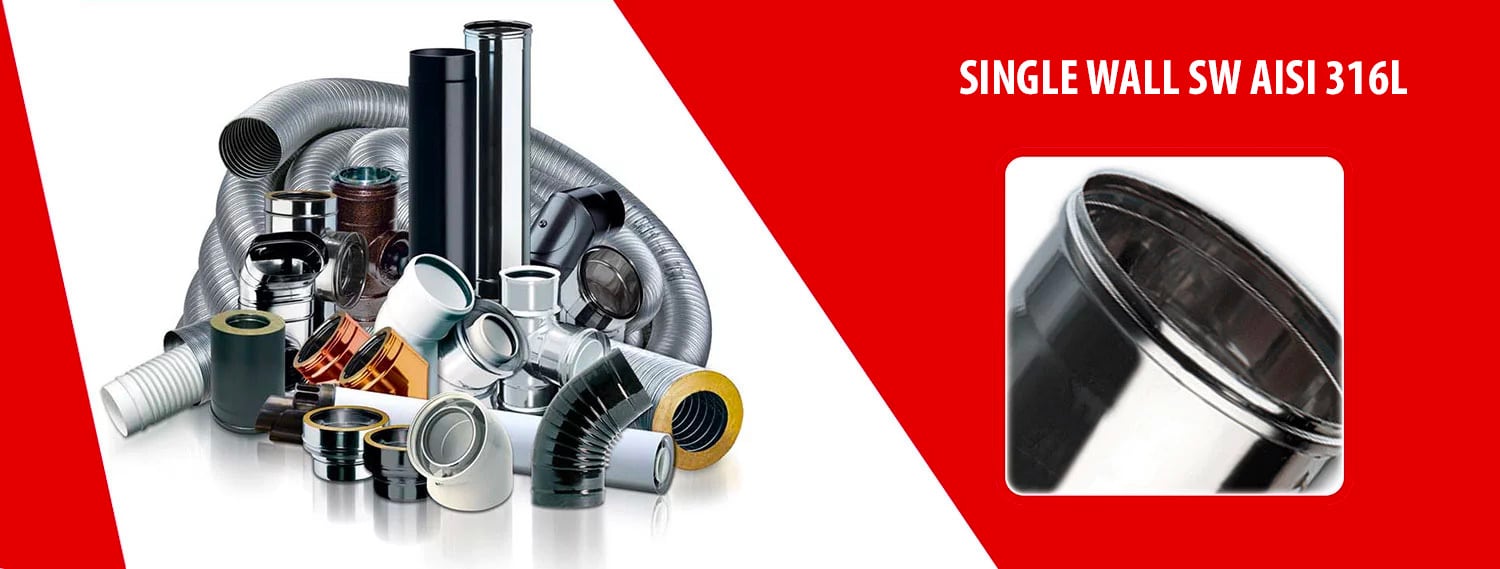

SINGLE WALL: SW AISI 316L
The single-wall flue system is made up of rigid modular components with a glossy finish, manufactured in AISI 316L austenitic stainless steel, with a minimum thickness of 0.4mm, compliant with the CE marking according to EN 1856-1 and EN 1856-2 European standards. The modular components have a classic male-female socket coupling, with a triple lip seal, and mechanical joint with safety clamp compliant with European standard EN 14241-1.
DESIGNATIONS OF USE
|
CONDENSATION RESISTANT
|
YES |
|
|
INTERNAL WALL
|
YES |
|
|
DIAMETER
|
⌀ 50 ÷ 300 | |
|
TEMPERATURE LEVEL
|
200 °C
|
|
|
PRESSURE LEVEL
|
H1 = 5000 Pa
|
|
 |
GAS APPLIANCES
|
RECOMMENDED
|
 |
GAS CONDENSING APPLIANCES
|
RECOMMENDED
|
 |
OIL APPLIANCES
|
RECOMMENDED
|
 |
WOOD-BURNING APPLIANCES
|
NO
|
 |
PELLET APPLIANCES
|
RECOMMENDED
|
 |
GAS COOKER HOODS
|
RECOMMENDED
|
|
VENTILATION
|
POSSIBLE
|
 |
OUTDOOR INSTALLATION
|
NO
|
 |
INDOOR INSTALLATION
|
RECOMMENDED
|
 |
INSTALLATION IN CAVITY
|
RECOMMENDED
|
|
CONDENSATION RESISTANT
|
YES |
|
|
INTERNAL WALL
|
YES |
|
|
DIAMETERS
|
⌀ 50 ÷ 500 |
|
|
TEMPERATURE LEVEL
|
200 °C
|
|
|
PRESSURE LEVEL
|
P1 = 200 Pa
|
|
|
GAS APPLIANCES
|
RECOMMENDED
|
|
GAS CONDENSING APPLIANCES
|
RECOMMENDED
|
|
OIL APPLIANCES
|
RECOMMENDED
|
|
WOOD-BURNING APPLIANCES
|
NO
|
|
PELLET APPLIANCES
|
RECOMMENDED
|
|
GAS COOKER HOODS
|
RECOMMENDED
|
|
VENTILATION
|
POSSIBLE
|
|
OUTDOOR INSTALLATION
|
NO
|
|
INDOOR INSTALLATION
|
RECOMMENDED
|
|
INSTALLATION IN CAVITY
|
RECOMMENDED
|
|
CONDENSATION RESISTANT
|
YES |
|
|
INTERNAL WALL
|
YES |
|
|
DIAMETERS
|
⌀ 50 ÷ 800 |
|
|
TEMPERATURE LEVEL
|
600 °C
|
|
|
PRESSURE LEVEL
|
N1 = 40 Pa
|
|
|
GAS APPLIANCES
|
RECOMMENDED
|
|
GAS CONDENSING APPLIANCES
|
RECOMMENDED
|
|
OIL APPLIANCES
|
RECOMMENDED
|
|
WOOD-BURNING APPLIANCES
|
RECOMMENDED
|
|
PELLET APPLIANCES
|
RECOMMENDED
|
|
GAS COOKER HOODS
|
RECOMMENDED
|
|
VENTILATION
|
POSSIBLE
|
|
OUTDOOR INSTALLATION
|
NO
|
|
INDOOR INSTALLATION
|
RECOMMENDED
|
|
INSTALLATION IN CAVITY
|
RECOMMENDED
|
|
CONDENSATION RESISTANT
|
YES |
|
|
INTERNAL WALL
|
YES |
|
|
DIAMETERS
|
⌀ 50 ÷ 800 |
|
|
TEMPERATURE LEVEL
|
600 °C
|
|
|
PRESSURE LEVEL
|
N1 = 40 Pa
|
|
|
GAS APPLIANCES
|
RECOMMENDED
|
|
GAS CONDENSING APPLIANCES
|
RECOMMENDED
|
|
OIL APPLIANCES
|
RECOMMENDED
|
|
WOOD-BURNING APPLIANCES
|
RECOMMENDED |
|
PELLET APPLIANCES
|
RECOMMENDED
|
|
GAS COOKER HOODS
|
RECOMMENDED
|
|
VENTILATION
|
POSSIBLE
|
|
OUTDOOR INSTALLATION
|
NO
|
|
INDOOR INSTALLATION
|
RECOMMENDED
|
|
INSTALLATION IN CAVITY
|
RECOMMENDED
|
Usual reference and designation
Product marking according to European standard
CE 0476 EN 1856-1 / EN 1856-2.
T200 P1 W V2 L50040* O 30 with gasket
T600 N1 W V2 L50040 G
T600 N1 W V2 L50040 G 500M
T200 H1 W V2 L50040 O30 with special gasket on request
* The designation may vary according to the quality and thickness of the raw material as indicated in the table below:
Usage
Masonry Chimneys, flue ducts, steel chimneys serving atmospheric, pressurised, blown air, traditional or condensing heat generators, kitchen hoods for industrial or domestic use, wood stoves, fireplaces, pellet stoves.
Application
Internal installation.
Available diameters - mm
SW04 thickness 0,4 mm
50* - 60 - 80 - 100 - 120 - 125 - 130 - 140 - 150 - 160 - 180 - 200
SW05 thickness 0,5 mm
220 - 250 - 300 - 350 - 400. Diameter 450 - 500 on request
Up to diameter 800 on request
*thickness 0.5 mm
