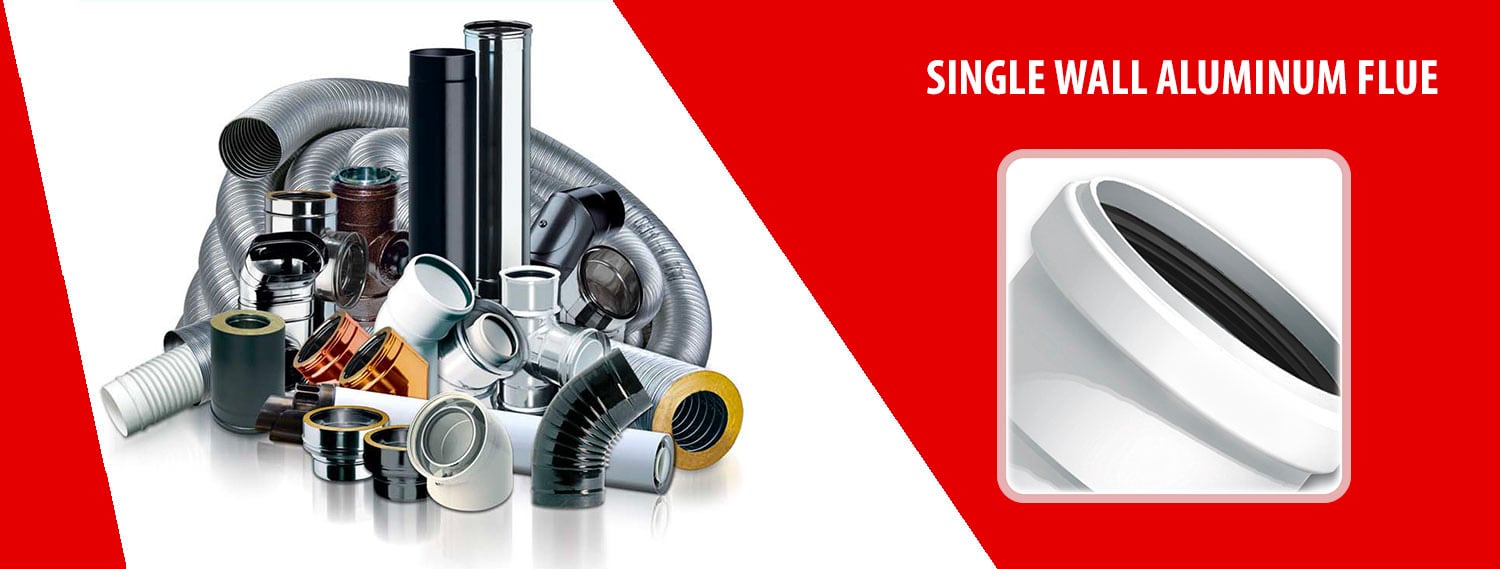

SINGLE WALL: SINGLE WALL ALUMINUM FLUE

The ALUTEK single-wall flue system is made up of single-wall rigid modular components, manufactured in white enamelled aluminum with a minimum thickness of 1 mm. It is used as a flue system for the combustion of air in a generator, according to the EN 1856-2 European standard. The modular components have a classic calibrated male-female socket coupling with triple lip seal, compliant with European standard EN 14241-1. The system is suitable for carrying flue gasses with a maximum operating temperature of up to 200 °C.

DESIGNATIONS OF USE

Click on the diameter to find out the relative designations of use
Designation T200 H1 W Vm L13100 O 60 (5000 Pa sealing system with gasket)
CONDENSATION RESISTANT

YES

INTERNAL WALL

ALUMINUM

DIAMETER
80
TEMPERATURE LEVEL
200 °C  
PRESSURE LEVEL
H1 = 5000 Pa
GAS APPLIANCES
RECOMMENDED
GAS CONDENSING APPLIANCES
NO
OIL APPLIANCES
NO
WOOD-BURNING APPLIANCES
NO
PELLET APPLIANCES
NO
GAS COOKER HOODS
NO
VENTILATION
RECOMMENDED
OUTDOOR INSTALLATION
NO
INDOOR INSTALLATION
RECOMMENDED
INSTALLATION IN CAVITY
RECOMMENDED

Usual reference and designation

Product marking according to European standard EN 1856-2.
T200 H1 W VM L13100 O 60 - thickness 1 mm

Usage

Masonry Chimney, flue ducts, steel chimneys, air vents serving atmospheric, pressurised, traditional blown air heat generators, kitchen hoods for domestic use.

Application

Internal installation.

Available diameters - mm

80

Silicone gasket included and fitted.
