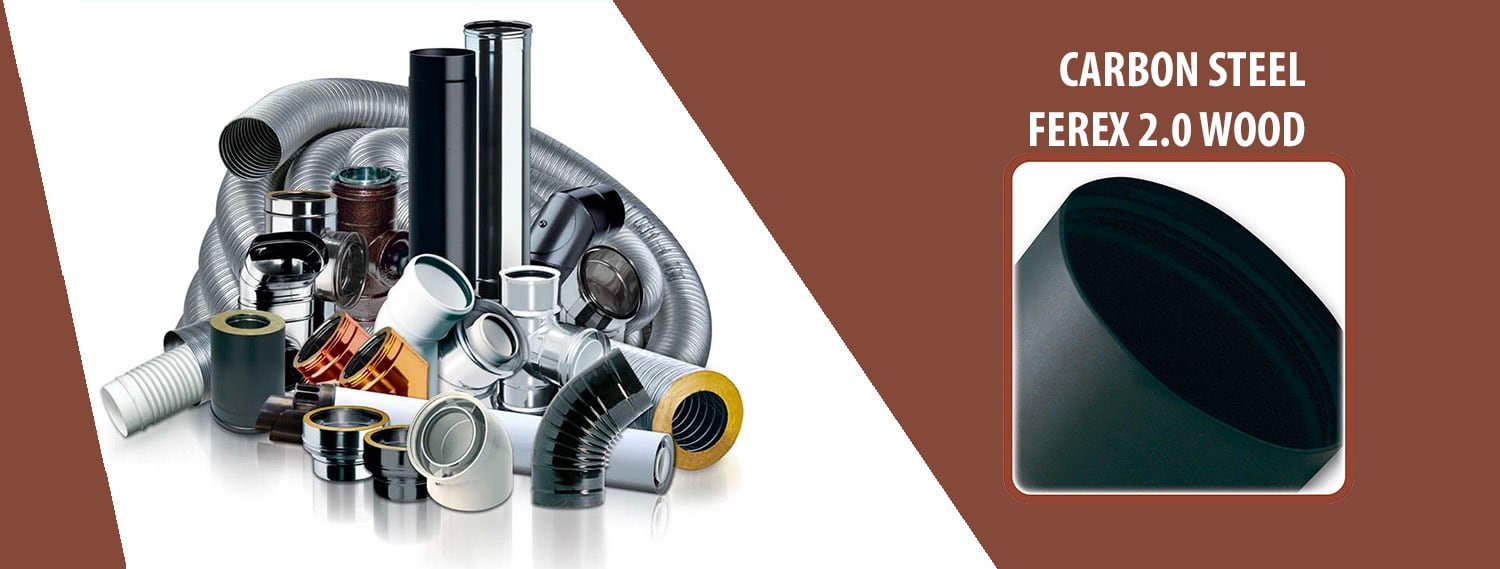

BIOMASS: CARBON STEEL FEREX 2.0 WOOD
Flue system for wood stoves in black painted carbon steel - thickness 2 mm.
The FEREX 2.0 LEGNA single-wall system is made up of rigid modular components, manufactured in 2 mm thick matt black painted carbon steel tapered, together with seals, for the extraction of flue gases, high aesthetic quality. The components comply as required by the CE marking according to the EN 1856-2 European standard and have a tapered male socket connection. Ideal with generators operating in negative pressure with solid fuels and very high temperatures (up to 600 °C).
DESIGNATIONS OF USE
|
CONDENSATION RESISTANT
|
NO |
|
|
INTERNAL WALL
|
Painted |
|
|
DIAMETERS
|
⌀ 120 ÷ 200 |
|
|
TEMPERATURE LEVEL
|
600 °C
|
|
|
PRESSURE LEVEL
|
N1 = 40 Pa
|
|
 |
GAS APPLIANCES
|
NO |
 |
GAS CONDENSING APPLIANCES
|
NO
|
 |
OIL APPLIANCES
|
NO
|
 |
WOOD-BURNING APPLIANCES
|
RECOMMENDED |
 |
PELLET APPLIANCES
|
NO
|
 |
GAS COOKER HOODS
|
NO
|
|
VENTILATION
|
NO
|
 |
OUTDOOR INSTALLATION
|
NO
|
 |
INDOOR INSTALLATION
|
RECOMMENDED
|
 |
INSTALLATION IN CAVITY
|
POSSIBLE
|
Usual reference and designation
Product marking according to European standard EN 1856-2.
T600 N1 D Vm L01200 Gxxx NM (xxx = 3 times the Ø)
T600 N1 D Vm L01200 G800 M Ø 200
Usage
Masonry Chimneys, flue ducts, steel chimneys, used in particular for heat generators such as wood stoves and fireplaces.
Application
Internal installation.
Available diameters - mm
120 - 130 - 140 - 150 - 180 - 200.
