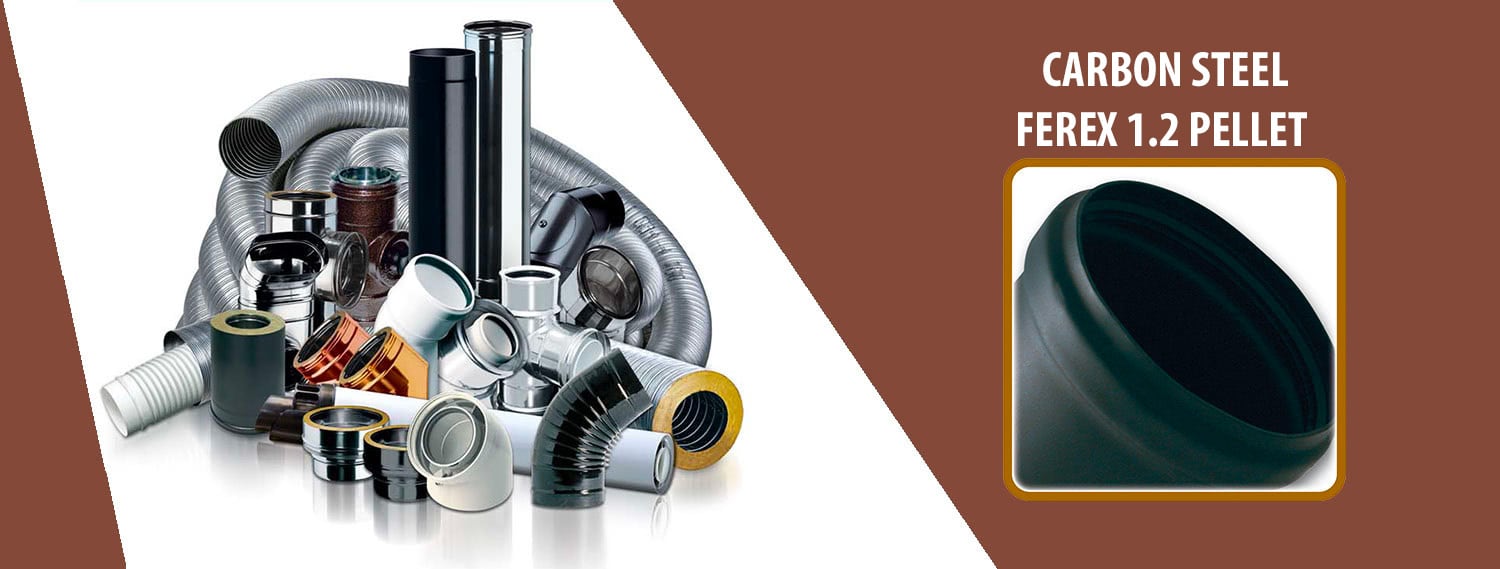

BIOMASS: CARBON STEEL FEREX 1.2 PELLET
Flue system for pellet stoves in black painted carbon steel - thickness 1.2 mm
The FEREX 1.2 PELLET single-wall system is made up of rigid modular components, manufactured in matt black painted carbon steel with a minimum thickness of 1.2 mm, compliant with CE marking according to the EN 1856-2 European standards. The modular components have a classic male-female socket coupling calibrated with triple lip sealing gasket, to be used only with temperatures not exceeding 200 °C and positive pressures up to 200 Pa, and junction mechanics with simple coupling. All compliant with European standard EN 14241-1.
DESIGNATIONS OF USE
|
CONDENSATION RESISTANT
|
NO |
|
|
INTERNAL WALL
|
Painted iron |
|
|
DIAMETERS
|
⌀ 80 ÷ 120 |
|
|
TEMPERATURE LEVEL
|
200 °C
|
|
|
PRESSURE LEVEL
|
P1 = 200 Pa
|
|
 |
GAS APPLIANCES
|
NO
|
 |
GAS CONDENSING APPLIANCES
|
NO
|
 |
OIL APPLIANCES
|
NO
|
 |
WOOD-BURNING APPLIANCES
|
NO
|
 |
PELLET APPLIANCES
|
RECOMMENDED
|
 |
GAS COOKER HOODS
|
NO
|
|
VENTILATION
|
POSSIBLE
|
 |
OUTDOOR INSTALLATION
|
NO
|
 |
INDOOR INSTALLATION
|
RECOMMENDED
|
 |
INSTALLATION IN CAVITY
|
POSSIBLE
|
|
CONDENSATION RESISTANT
|
NO |
|
|
INTERNAL WALL
|
Painted iron |
|
|
DIAMETERS
|
⌀ 80 ÷ 120 |
|
|
TEMPERATURE LEVEL
|
600 °C
|
|
|
PRESSURE LEVEL
|
N1 = 40 Pa
|
|
|
GAS APPLIANCES
|
NO |
|
GAS CONDENSING APPLIANCES
|
NO
|
|
OIL APPLIANCES
|
NO
|
|
WOOD-BURNING APPLIANCES
|
NO
|
|
PELLET APPLIANCES
|
RECOMMENDED
|
|
GAS COOKER HOODS
|
NO
|
|
VENTILATION
|
POSSIBLE
|
|
OUTDOOR INSTALLATION
|
NO
|
|
INDOOR INSTALLATION
|
RECOMMENDED
|
|
INSTALLATION IN CAVITY
|
POSSIBLE
|
Usual reference and designation
Product marking according to European regulation CE EN 1856-2.
T200 P1 D Vm L01120 O 30 M
T600 N1 D Vm L01120 G375 NM
Usage
Masonry Chimneys, flue ducts, steel chimneys, air vents serving heat generators such as pellet stoves, biofuels and the like.
Application
Internal installation.
Available diameters - mm/h4>
80 - 100 - 120.
The 120 diameter is available on request.
