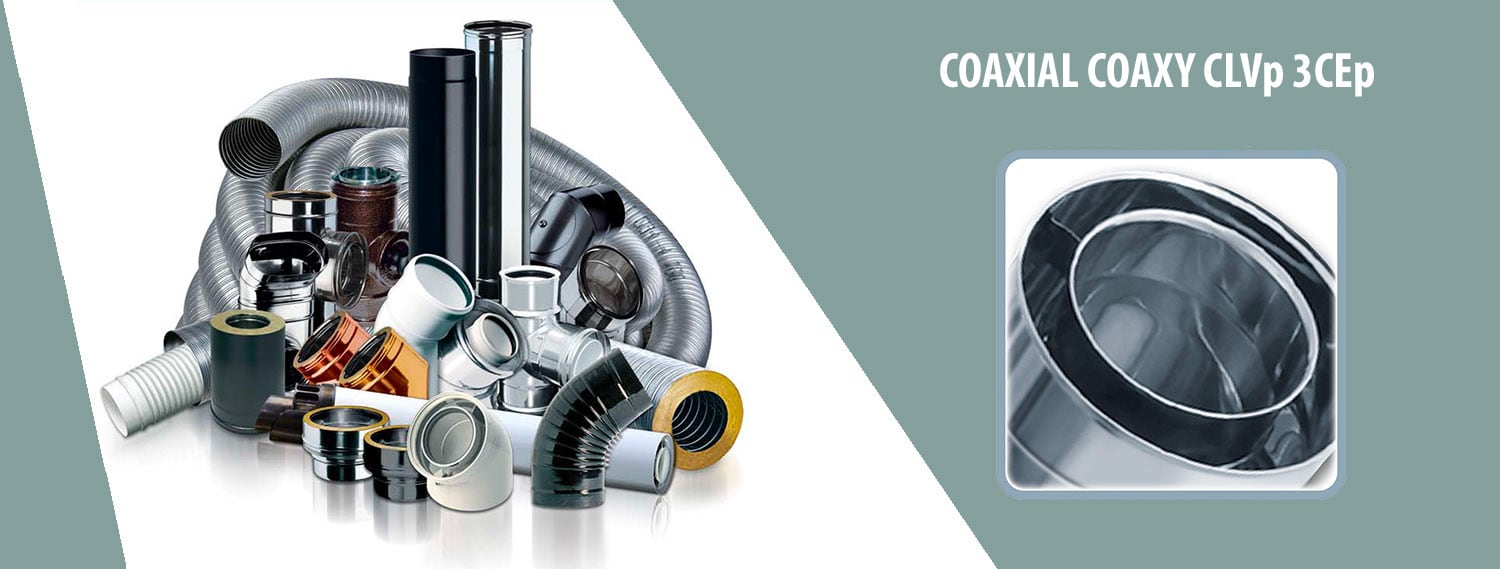

COAXIAL: COAXY CLVp 3CEp
The COAXY - CLVp 3CEp coaxial system is made up of rigid modular components with a BA polished finish, manufactured with austenitic stainless steel AISI 316L BA (1.4404) with a minimum thickness of 0.4 mm, compliant with CE marking according to the EN 1856-1 European standards. The modular components have a classic calibrated male-female socket coupling with triple lip seal, and mechanical joint with safety clamp. All compliant with European standard EN 14241-1.
DESIGNATIONS OF USE
|
CONDENSATION RESISTANT
|
YES |
|
|
INTERNAL WALL
|
AISI 316L | |
|
OUTER WALL
|
AISI 304L |
|
|
INSULATION
|
Ventilated air |
|
|
INSULATION THICKNESS
|
NO |
|
|
DIAMETERS
|
⌀ 100 ÷ 250 |
|
|
TEMPERATURE LEVEL
|
200 °C
|
|
|
PRESSURE LEVEL
|
P1 = 200 Pa
|
|
 |
GAS APPLIANCES
|
RECOMMENDED
|
 |
GAS CONDENSING APPLIANCES
|
RECOMMENDED
|
 |
OIL APPLIANCES
|
NO
|
 |
WOOD-BURNING APPLIANCES
|
NO
|
 |
PELLET APPLIANCES
|
NO
|
 |
GAS COOKER HOODS
|
NO |
|
VENTILATION
|
NO
|
 |
OUTDOOR INSTALLATION
|
NO
|
 |
INDOOR INSTALLATION
|
RECOMMENDED |
 |
INSTALLATION IN CAVITY
|
RECOMMENDED
|
Usual reference and designation
Product marking according to European standard EN 1856-1.
T200 P1 W V2 L50040 O30
T200 P1 W V2 L50050 O30
T200 P1 W V2 L50060 O30
T200 P1 W V2 L50080 O30
Usage
The CLVp 3CEp system is a collective combustion air intake and combustion products evacuation system intended for C42, C43, C82 or C(10)2, C(10)3, C( 12)2, C(12)3.
The system works in positive pressure.
Application
Internal installation.
Available diameters - mm - ON REQUEST
100/150 - 110/180 - 130/200 - 150/230 - 180/250 - 200/300 - 230/350 - 250/400
Silicone gasket included and fitted.
Safety band included (code L316EXFACSS).
