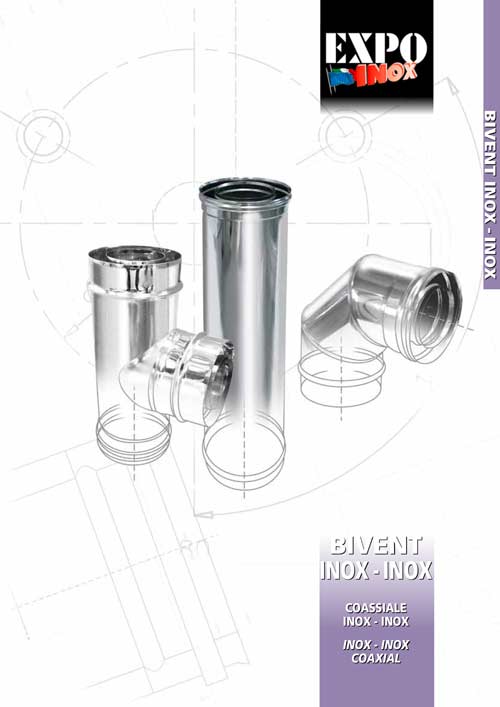

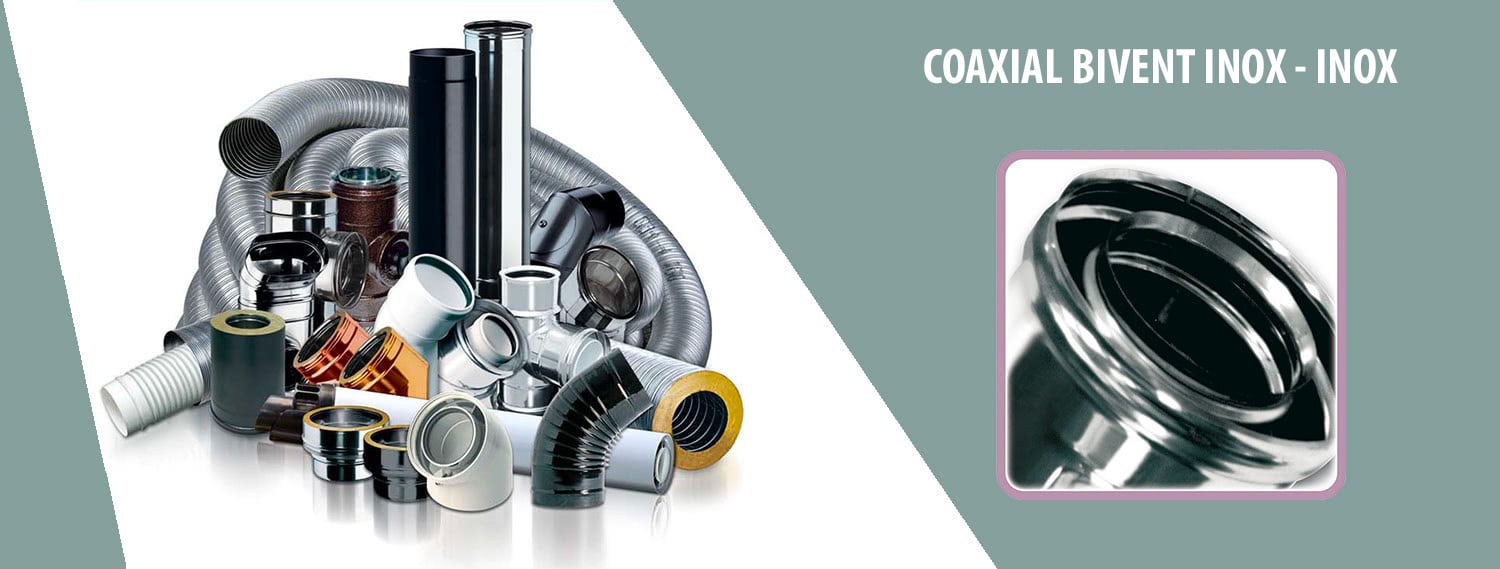

COAXIAL: BIVENT INOX - INOX
The BIVENT INOX - INOX coaxial stainless steel-stainless steel system is made up of coaxial rigid modular components, made of AISI 316L stainless steel with a minimum thickness of 0.4 mm and protected by an external wall in AISI 304 stainless steel, with a BA polished finish with a thickness of 0 .4 mm, which forms the containment for simple ventilation and/or the supply of combustion air to the generator, compliant with CE marking according to the EN 1856-1 and EN 14989-2 European standards. The modular components have a classic calibrated male-female socket coupling with triple lip seal, compliant with European standard EN 14241.
DESIGNATIONS OF USE
CONDENSATION RESISTANT
|
YES |
|
INTERNAL WALL
|
AISI 316L | |
OUTER WALL
|
AISI 304L |
|
INSULATION
|
Ventilated air |
|
INSULATION THICKNESS
|
NO |
|
DIAMETERS
|
⌀ 60 ÷ 150 |
|
TEMPERATURE LEVEL
|
200 °C
|
|
PRESSURE LEVEL
|
P1 = 200 Pa
|
|
![]() |
GAS APPLIANCES
|
RECOMMENDED
|
![]() |
GAS CONDENSING APPLIANCES
|
RECOMMENDED
|
![]() |
OIL APPLIANCES
|
RECOMMENDED
|
![]() |
WOOD-BURNING APPLIANCES
|
NO
|
![]() |
PELLET APPLIANCES
|
RECOMMENDED
|
![]() |
GAS COOKER HOODS
|
POSSIBLE
|
![]() |
VENTILATION
|
POSSIBLE
|
![]() |
OUTDOOR INSTALLATION
|
RECOMMENDED
|
![]() |
INDOOR INSTALLATION
|
RECOMMENDED
|
![]() |
INSTALLATION IN CAVITY
|
POSSIBLE
|
CONDENSATION RESISTANT
|
YES |
|
INTERNAL WALL
|
AISI 316L | |
OUTER WALL
|
AISI 304L |
|
INSULATION
|
Ventilated air |
|
INSULATION THICKNESS
|
NO |
|
DIAMETERS
|
⌀ 60 ÷ 150 |
|
TEMPERATURE LEVEL
|
600 °C
|
|
PRESSURE LEVEL
|
N1 = 40 Pa
|
|
![]() |
GAS APPLIANCES
|
RECOMMENDED
|
![]() |
GAS CONDENSING APPLIANCES
|
RECOMMENDED
|
![]() |
OIL APPLIANCES
|
RECOMMENDED
|
![]() |
WOOD-BURNING APPLIANCES
|
NO
|
![]() |
PELLET APPLIANCES
|
RECOMMENDED
|
![]() |
GAS COOKER HOODS
|
POSSIBLE
|
![]() |
VENTILATION
|
POSSIBLE
|
![]() |
OUTDOOR INSTALLATION
|
RECOMMENDED
|
![]() |
INDOOR INSTALLATION
|
RECOMMENDED
|
![]() |
INSTALLATION IN CAVITY
|
POSSIBLE
|
Usual reference and designation
Product marking according to European regulation
CE 0476 EN 1856-1 / EN 14989-2.
T200 P1 W V2 L50040 O 50 with gasket
T600 N1 W V2 L50040 G 80 without gasket
T600 N1 W V2 L50040 G 100
Usage
SModular flue systems - chimneys, masonry chimneys, steel chimneys, air vents - slaved to pressurised, blown air, traditional or condensing generators.
Application
Indoor and outdoor installation.
Per For external installations, use the gaskets also on the external pipe.
Available diameters - mm - ON REQUEST
60/100 - 80/125 - 100/150 - 130/200 - 150/200
