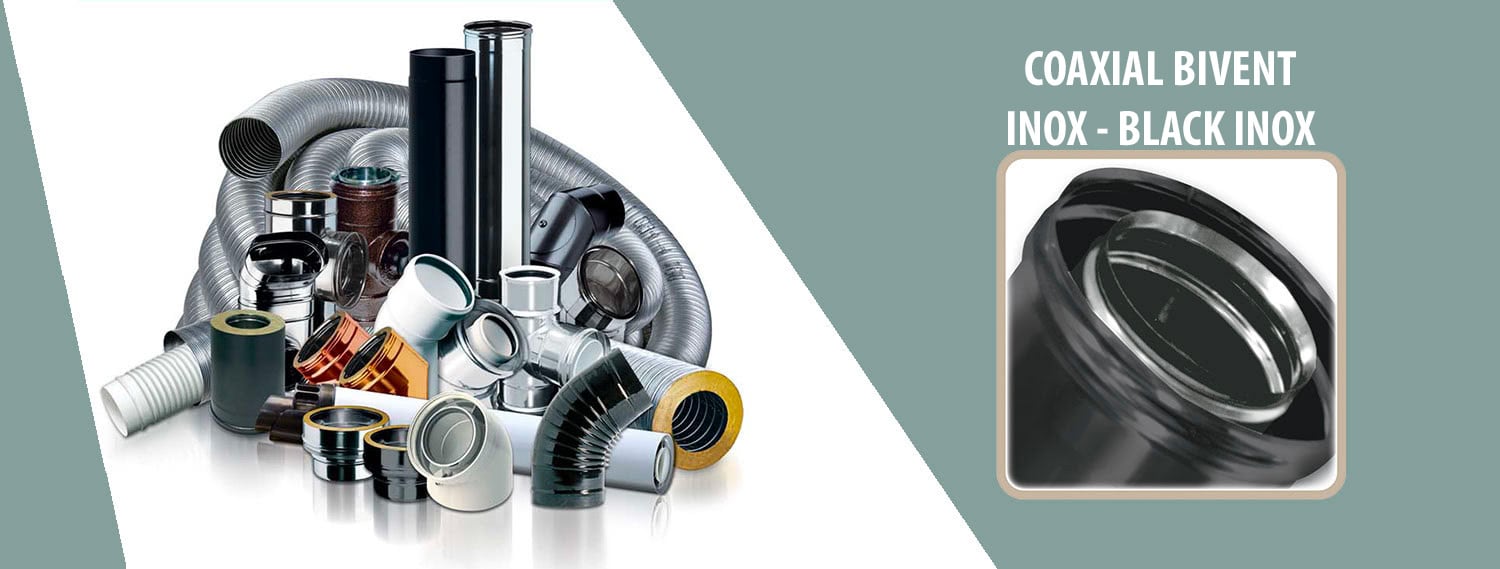

The BIVENT INOX - INOX BLACK coaxial stainless steel-black stainless steel system is made up of coaxial rigid modular components manufactured in AISI 316L stainless steel with a minimum thickness of 0.4 mm and protected by an external wall in AISI 304 stainless steel, painted matt black, thickness 0 .4 mm, which forms the containment for simple ventilation and/or the supply of combustion air to the generator, compliant with CE marking according to the EN 1856-1 and EN 14989-2 European standards. The modular components have a classic calibrated male-female socket coupling with triple lip seal, compliant with European standard EN 14241.

Usual reference and designation

Product marking according to European regulation CE 0476 EN 1856-1 / EN 14989-2.
T200 P1 W V2 L50040 O 50 with gasket
T600 N1 W V2 L50040 G 80 without gasket
T600 N1 W V2 L50040 G 100 without gasket

Usage

Modular flue systems - chimneys, masonry chimneys, steel chimneys, air vents - slaved to pressurised, blown air, traditional or condensing generators.

Application

Indoor and outdoor installation.
For external installations, use the gaskets also on the external pipe.

Available diameters - mm - ON REQUEST

60/100 - 80/125 - 100/150 - 130/200 - 150/200

Silicone gasket included and mounted on the inner flue wall for diameters:
60/100 - 80/125 - 100/150
