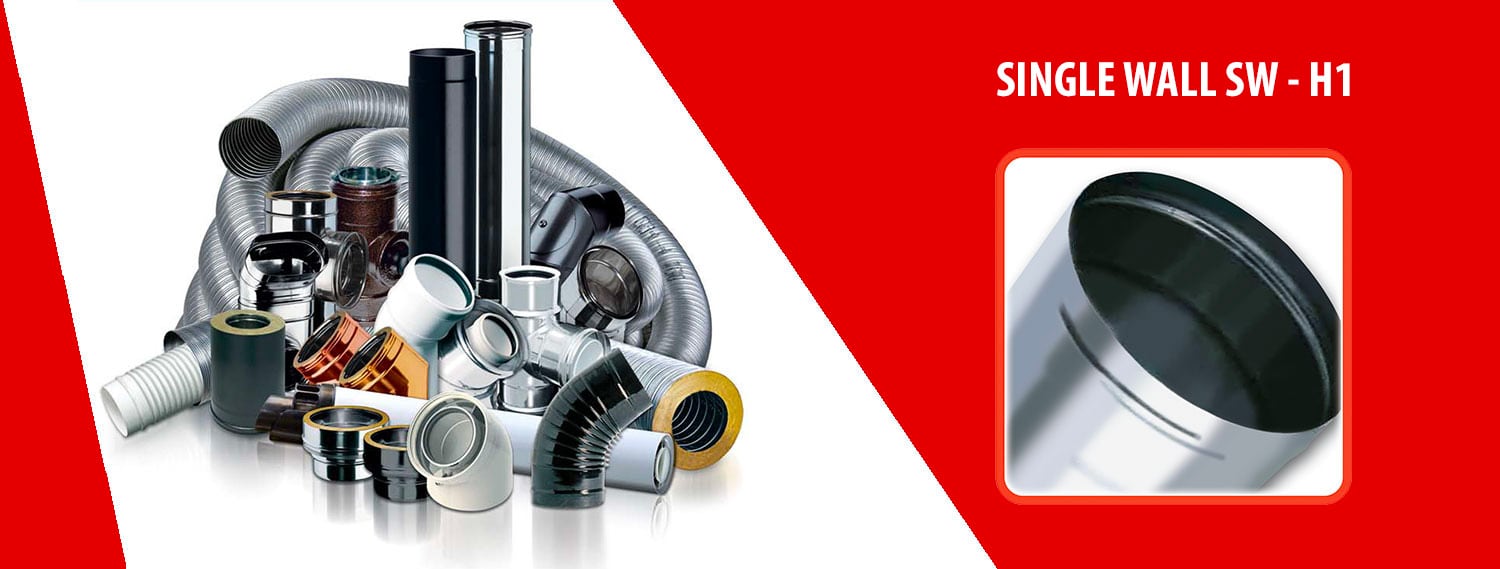

SINGLE WALL: SW H1
The SW - H1 single wall flue system is made up of rigid modular components with a BA polished finish, manufactured in AISI 316L stainless steel and longitudinally welded with LASER and TIG processes in a protected atmosphere.
The SW - H1 system does not require silicone sealing gaskets as it is equipped with a special male - female joint.
The practical joint system guarantees perfect sealing against vibrations and high temperatures with high pressure.
The SW - H1 system has a wide range of accessories that allows you to create different types of fireplaces: sigle flue, collective flues, flue systems, ducts and chimneys.
The SW - H1 single wall flue system has a CE marking in accordance with the EN 1856-1 European standard.
DESIGNATIONS OF USE
CONDENSATION RESISTANT
|
YES |
|
INTERNAL WALL
|
AISI 316L |
|
DIAMETER
|
⌀ 80 ÷ 500 | |
TEMPERATURE LEVEL
|
200 °C
|
|
PRESSURE LEVEL
|
H1 = 5000 Pa
|
|
GAS APPLIANCES
|
RECOMMENDED
|
|
GAS CONDENSING APPLIANCES
|
RECOMMENDED
|
|
OIL APPLIANCES
|
RECOMMENDED
|
|
WOOD-BURNING APPLIANCES
|
RECOMMENDED
|
|
PELLET APPLIANCES
|
RECOMMENDED
|
|
GAS COOKER HOODS
|
RECOMMENDED
|
|
VENTILATION
|
POSSIBLE
|
|
OUTDOOR INSTALLATION
|
NO
|
|
INDOOR INSTALLATION
|
RECOMMENDED
|
|
INSTALLATION IN CAVITY
|
RECOMMENDED
|
CONDENSATION RESISTANT
|
YES |
|
INTERNAL WALL
|
AISI 316L |
|
DIAMETERS
|
⌀ 80 ÷ 500 |
|
TEMPERATURE LEVEL
|
600 °C
|
|
PRESSURE LEVEL
|
H1 = 5000 Pa
|
|
GAS APPLIANCES
|
RECOMMENDED
|
|
GAS CONDENSING APPLIANCES
|
RECOMMENDED
|
|
OIL APPLIANCES
|
RECOMMENDED
|
|
WOOD-BURNING APPLIANCES
|
RECOMMENDED
|
|
PELLET APPLIANCES
|
RECOMMENDED
|
|
GAS COOKER HOODS
|
RECOMMENDED
|
|
VENTILATION
|
POSSIBLE
|
|
OUTDOOR INSTALLATION
|
NO
|
|
INDOOR INSTALLATION
|
RECOMMENDED
|
|
INSTALLATION IN CAVITY
|
RECOMMENDED
|
CONDENSATION RESISTANT
|
YES |
|
INTERNAL WALL
|
AISI 316L
|
|
DIAMETERS
|
⌀ 80 ÷ 500 |
|
TEMPERATURE LEVEL
|
600 °C
|
|
PRESSURE LEVEL
|
H1 = 5000 Pa
|
|
GAS APPLIANCES
|
RECOMMENDED
|
|
GAS CONDENSING APPLIANCES
|
RECOMMENDED
|
|
OIL APPLIANCES
|
RECOMMENDED
|
|
WOOD-BURNING APPLIANCES
|
RECOMMENDED | |
PELLET APPLIANCES
|
RECOMMENDED
|
|
GAS COOKER HOODS
|
RECOMMENDED
|
|
VENTILATION
|
POSSIBLE
|
|
OUTDOOR INSTALLATION
|
NO
|
|
INDOOR INSTALLATION
|
RECOMMENDED
|
|
INSTALLATION IN CAVITY
|
RECOMMENDED
|
