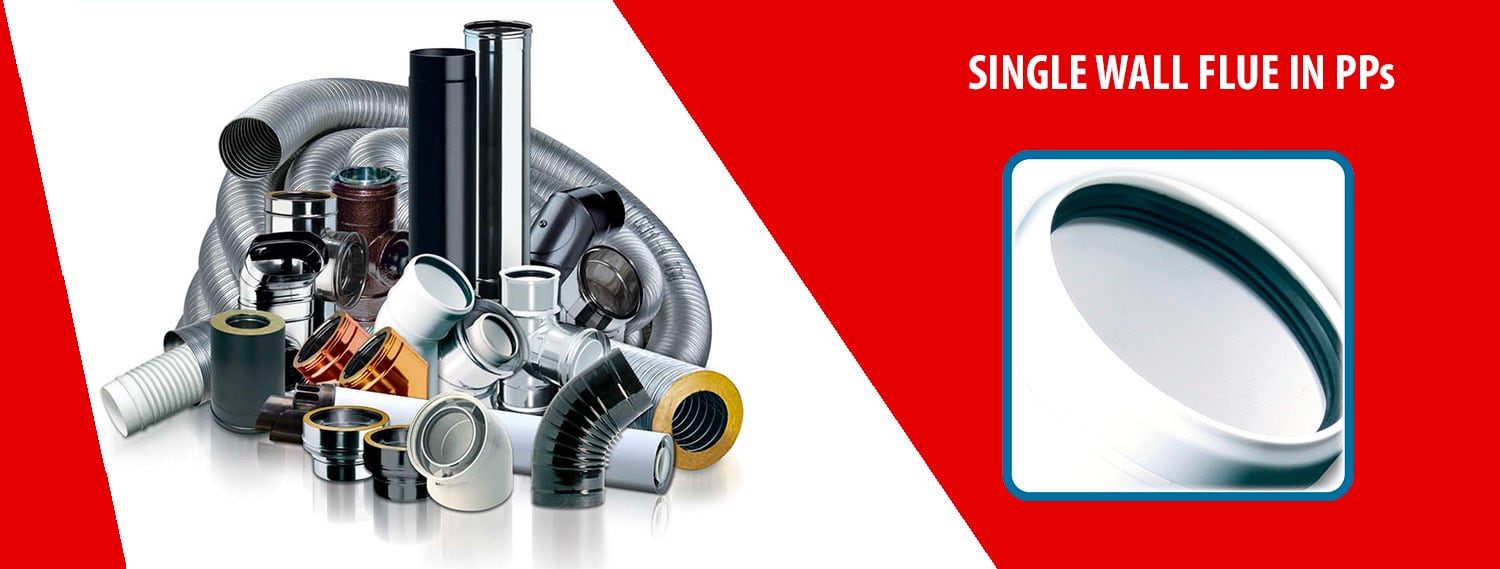

SINGLE WALL: SINGLE WALL FLUE IN PPs

The PPs PPex single-wall flue system is made up of rigid and flexible modular components, manufactured in white enriched polypropylene with a minimum thickness of 1 mm, compliant with CE marking according to EN 14471 European standard. The modular components have a classic calibrated male-female socket coupling with triple lip seal, compliant with European standard EN 14241-1. The system is suitable for extracting flue gases with a maximum operating temperature of up to 120 °C and positive pressure P1 equal to 200 Pa.

DESIGNATIONS OF USE

Click on the diameter to find out the relative designations of use
Designation T120 H1 W 2 O00 LI EU (strength up to 5000 Pa with seal)
CONDENSATION RESISTANT

YES

INTERNAL WALL

PP

DIAMETER
50 ÷ 200
TEMPERATURE LEVEL
120 °C
PRESSURE LEVEL
H1 = 5000 Pa
GAS APPLIANCES
NO
GAS / DIESEL CONDENSING APPLIANCES
RECOMMENDED
OIL APPLIANCES
NO
WOOD-BURNING APPLIANCES
NO
PELLET APPLIANCES
NO
GAS COOKER HOODS
RECOMMENDED
VENTILATION
RECOMMENDED
OUTDOOR INSTALLATION
NO
INDOOR INSTALLATION
RECOMMENDED
INSTALLATION IN CAVITY
RECOMMENDED
Designation T120 P1 W 2 O00 LI EU (resistance up to 200 Pa with seal)
CONDENSATION RESISTANT

YES

INTERNAL WALL

PP

DIAMETERS

50 ÷ 200

TEMPERATURE LEVEL
120 °C
PRESSURE LEVEL
P1 = 200 Pa
GAS APPLIANCES
NO
GAS / DIESEL CONDENSING APPLIANCES
RECOMMENDED
OIL APPLIANCES
NO
WOOD-BURNING APPLIANCES
NO
PELLET APPLIANCES
NO
GAS COOKER HOODS
RECOMMENDED
VENTILATION
RECOMMENDED
OUTDOOR INSTALLATION
NO
INDOOR INSTALLATION
RECOMMENDED
INSTALLATION IN CAVITY
RECOMMENDED

Usual reference and designation

Product marking according to European standard CE 0476 EN 14471.
⌀ 50 ÷100: T120 P1 W 2 O00 LI E U - T120 H1 W 2 O00 LI E U
⌀ 125 ÷160: T120 P1 W 2 O00 LI E U - T120 H1 W 2 O00 LI E U
⌀ 200: T120 P1 W 2 O00 LI E U - T120 H1 W 2 O00 LI E U

Usage

Flue system and plastic flue duct serving condensing generators, kitchen hoods for domestic use.

Application

Internal installation.

Available diameters - mm

50 - 60 - 80 - 100 - 125 - 160 - 200

EPDM gasket included and mounted.
