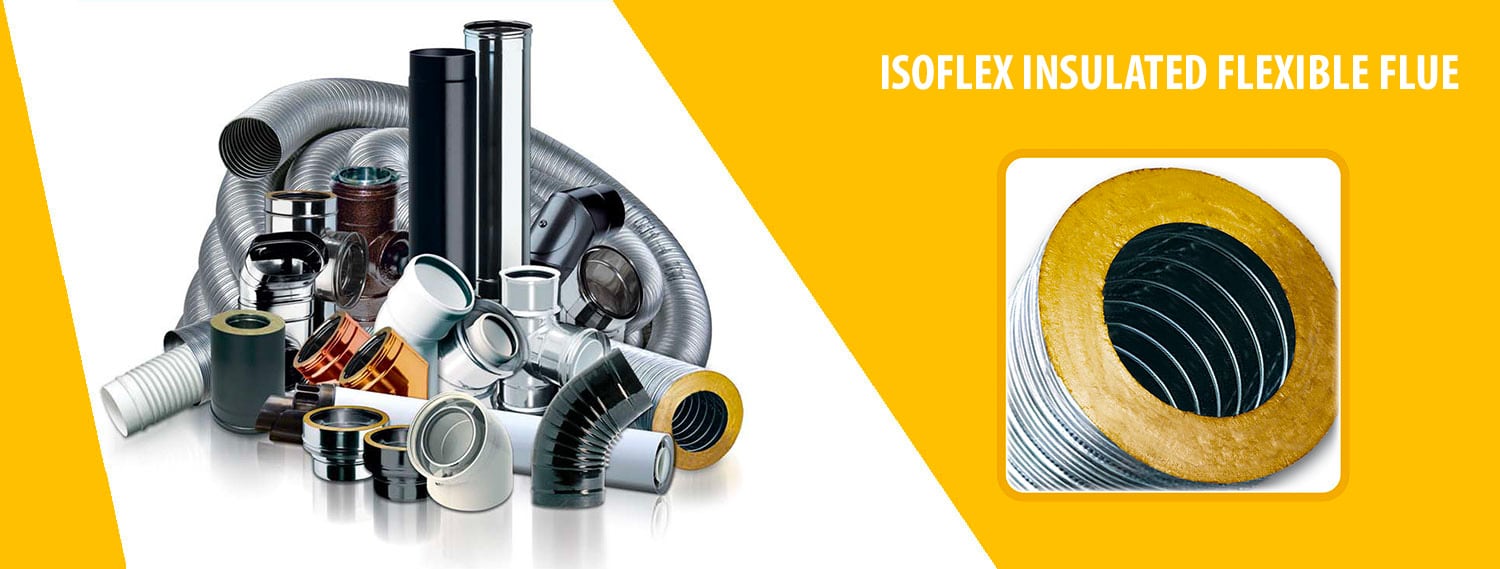

TWIN WALL: ISOFLEX - INSULATED
Insulated flexible flue liner in AISI 316L stainless steel
- AISI 316L stainless steel smooth twin wall internal wall
- AISI 304 stainless steel single wall external wall
- 25 mm high density rockwool insulation • Simple to use
- Perfectly maintains the temperature thanks to the insulation
- Limits the risk of soot accumulation
- It hinders the formation of condensate in the chimney
- Improves the efficiency of the appliance
- Facilitates the chimney draft
- The installation cost is very low: being pre-insulated, it does not require further assembly work between the flex pipe and the insulators, which generally takes place on site by the installer.
DESIGNATIONS OF USE
Click on the designation to find out the related usage specifications
Designation T200 P1 W V2 L50010 O (system 200 Pa sealing with gasket)
|
CONDENSATION RESISTANT
|
YES |
|
|
INTERNAL WALL
|
AISI 316L | |
|
OUTER WALL
|
AISI 304L |
|
|
INSULATION
|
Rock wool |
|
|
INSULATION THICKNESS
|
25 mm |
|
|
DIAMETERS
|
⌀ 80 ÷ 180 |
|
|
TEMPERATURE LEVEL
|
200 °C
|
|
|
PRESSURE LEVEL
|
P1 = 200 Pa
|
|
 |
GAS APPLIANCES
|
RECOMMENDED
|
 |
GAS CONDENSING APPLIANCES
|
RECOMMENDED
|
 |
OIL APPLIANCES
|
RECOMMENDED
|
 |
WOOD-BURNING APPLIANCES
|
NO
|
 |
PELLET APPLIANCES
|
RECOMMENDED
|
 |
GAS COOKER HOODS
|
RECOMMENDED
|
|
VENTILATION
|
POSSIBLE
|
 |
OUTDOOR INSTALLATION
|
NO
|
 |
INDOOR INSTALLATION
|
NO
|
 |
INSTALLATION IN CAVITY
|
RECOMMENDED
|
Designation T600 N1 W V2 L50010 G (vacuum flue)
|
CONDENSATION RESISTANT
|
YES |
|
|
INTERNAL WALL
|
AISI 316L | |
|
OUTER WALL
|
AISI 304L |
|
|
INSULATION
|
Rock wool |
|
|
INSULATION THICKNESS
|
25 mm |
|
|
DIAMETERS
|
⌀ 80 ÷ 100 |
|
|
TEMPERATURE LEVEL
|
600 °C
|
|
|
PRESSURE LEVEL
|
N1 = 40 Pa
|
|
|
GAS APPLIANCES
|
RECOMMENDED
|
|
GAS CONDENSING APPLIANCES
|
RECOMMENDED
|
|
OIL APPLIANCES
|
RECOMMENDED
|
|
WOOD-BURNING APPLIANCES
|
RECOMMENDED
|
|
PELLET APPLIANCES
|
RECOMMENDED
|
|
GAS COOKER HOODS
|
RECOMMENDED
|
|
VENTILATION
|
POSSIBLE
|
|
OUTDOOR INSTALLATION
|
NO
|
|
INDOOR INSTALLATION
|
NO
|
|
INSTALLATION IN CAVITY
|
RECOMMENDED
|
