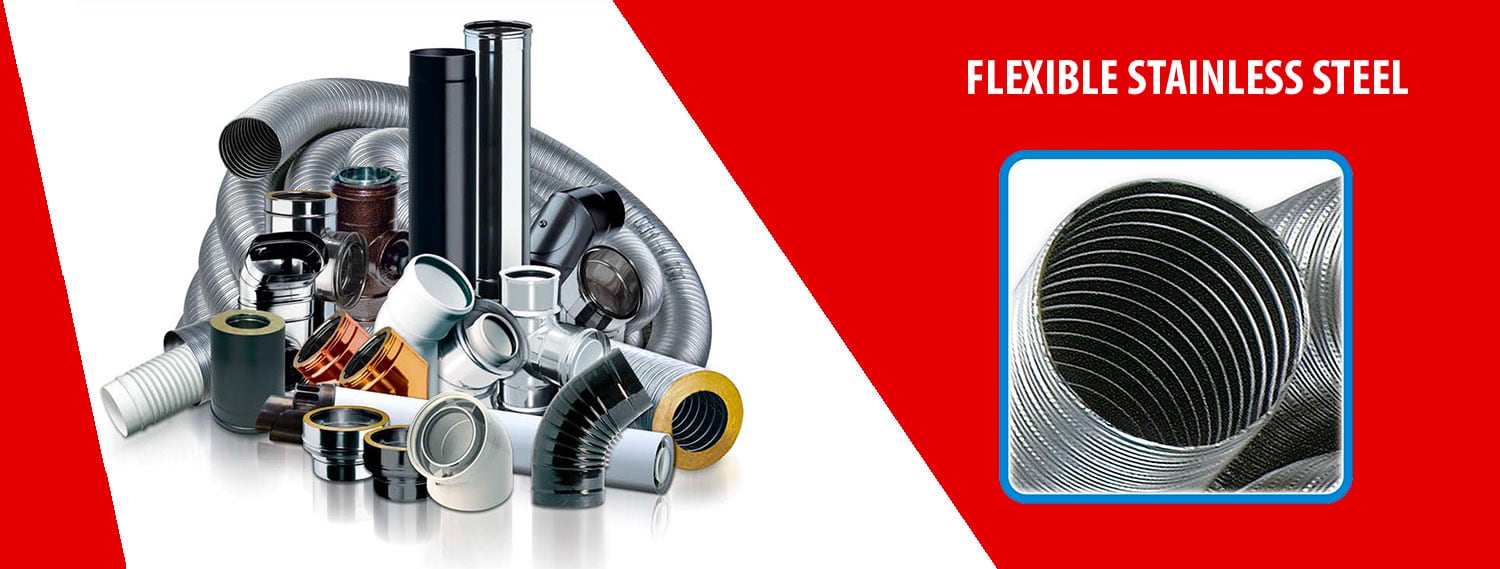

SINGLE WALL: FLEXIBLE STAINLESS STEEL
The EXPO FLEX system is ideal for relining original chimneys and technical compartments that are difficult to treat with other systems. It is a twin wall flexible system with a smooth interior, manufactured in austenitic stainless steel AISI 316L BA (1.4404), with a minimum thickness of 0.10 mm, compliant with the European standard EN 1856-2. EXPO FLEX is compatible with all products thanks to a vast range of fittings suitable for all purposes.
DESIGNATIONS OF USE
Click on the designation to find out the related usage specifications
|
RESISTANT TO CONDENSATION
|
NO |
|
|
INTERNAL WALL
|
AISI 316L |
|
|
DIAMETER
|
⌀ 80 ÷ 400 | |
|
TEMPERATURE LEVEL
|
600 °C
|
|
|
PRESSURE LEVEL
|
N1 = 40 Pa
|
|
 |
GAS APPLIANCES
|
NO
|
 |
GAS CONDENSING APPLIANCES
|
NO
|
 |
OIL APPLIANCES
|
NO
|
 |
WOOD-BURNING APPLIANCES
|
YES
|
 |
PELLET APPLIANCES
|
NO
|
 |
GAS COOKER HOODS
|
POSSIBLE
|
|
VENTILATION
|
RECOMMENDED
|
 |
OUTDOOR INSTALLATION
|
NO
|
 |
INDOOR INSTALLATION
|
NO
|
 |
INSTALLATION IN CAVITY
|
POSSIBLE
|
|
RESISTANT TO CONDENSATION
|
YES |
|
|
INTERNAL WALL
|
AISI 316L |
|
|
DIAMETER
|
⌀ 50 ÷ 300 | |
|
TEMPERATURE LEVEL
|
200 °C
|
|
|
PRESSURE LEVEL
|
P1 = 200 Pa
|
|
|
GAS APPLIANCES
|
POSSIBLE
|
|
GAS CONDENSING APPLIANCES
|
POSSIBLE
|
|
OIL APPLIANCES
|
POSSIBLE
|
|
WOOD-BURNING APPLIANCES
|
NO
|
|
PELLET APPLIANCES
|
POSSIBLE |
|
GAS COOKER HOODS
|
POSSIBLE
|
|
VENTILATION
|
RECOMMENDED
|
|
OUTDOOR INSTALLATION
|
NO
|
|
INDOOR INSTALLATION
|
NO
|
|
INSTALLATION IN CAVITY
|
POSSIBLE
|
|
RESISTANT TO CONDENSATION
|
YES |
|
|
INTERNAL WALL
|
AISI 316L |
|
|
DIAMETER
|
⌀ 50 ÷ 400 | |
|
TEMPERATURE LEVEL
|
600 °C
|
|
|
PRESSURE LEVEL
|
N1 = 40 Pa
|
|
|
GAS APPLIANCES
|
POSSIBLE
|
|
GAS CONDENSING APPLIANCES
|
POSSIBLE
|
|
OIL APPLIANCES
|
POSSIBLE
|
|
WOOD-BURNING APPLIANCES
|
POSSIBLE
|
|
PELLET APPLIANCES
|
POSSIBLE
|
|
GAS COOKER HOODS
|
POSSIBLE
|
|
VENTILATION
|
RECOMMENDED
|
|
OUTDOOR INSTALLATION
|
NO
|
|
INDOOR INSTALLATION
|
NO
|
|
INSTALLATION IN CAVITY
|
POSSIBLE
|
|
RESISTANT TO CONDENSATION
|
YES |
|
|
INTERNAL WALL
|
AISI 904L |
|
|
DIAMETER
|
⌀ 50 ÷ 300 | |
|
TEMPERATURE LEVEL
|
200 °C
|
|
|
PRESSURE LEVEL
|
P1 = 200 Pa
|
|
|
GAS APPLIANCES
|
POSSIBLE
|
|
GAS CONDENSING APPLIANCES
|
POSSIBLE
|
|
OIL APPLIANCES
|
POSSIBLE
|
|
WOOD-BURNING APPLIANCES
|
NO
|
|
PELLET APPLIANCES
|
POSSIBLE
|
|
GAS COOKER HOODS
|
POSSIBLE
|
|
VENTILATION
|
RECOMMENDED
|
|
OUTDOOR INSTALLATION
|
NO
|
|
INDOOR INSTALLATION
|
NO
|
|
INSTALLATION IN CAVITY
|
POSSIBLE
|
|
RESISTANT TO CONDENSATION
|
YES |
|
|
INTERNAL WALL
|
AISI 904L |
|
|
DIAMETER
|
⌀ 50 ÷ 400 | |
|
TEMPERATURE LEVEL
|
600 °C
|
|
|
PRESSURE LEVEL
|
N1 = 40 Pa
|
|
|
GAS APPLIANCES
|
POSSIBLE
|
|
GAS CONDENSING APPLIANCES
|
POSSIBLE
|
|
OIL APPLIANCES
|
POSSIBLE
|
|
WOOD-BURNING APPLIANCES
|
POSSIBLE
|
|
PELLET APPLIANCES
|
POSSIBLE
|
|
GAS COOKER HOODS
|
POSSIBLE
|
|
VENTILATION
|
RECOMMENDED
|
|
OUTDOOR INSTALLATION
|
NO
|
|
INDOOR INSTALLATION
|
NO
|
|
INSTALLATION IN CAVITY
|
POSSIBLE
|
|
RESISTANT TO CONDENSATION
|
YES |
|
|
INTERNAL WALL
|
AISI 304L |
|
|
DIAMETER
|
⌀ 50 ÷ 400 | |
|
TEMPERATURE LEVEL
|
600 °C
|
|
|
PRESSURE LEVEL
|
N1 = 40 Pa
|
|
|
GAS APPLIANCES
|
NO |
|
GAS CONDENSING APPLIANCES
|
NO
|
|
OIL APPLIANCES
|
NO
|
|
WOOD-BURNING APPLIANCES
|
NO
|
|
PELLET APPLIANCES
|
NO
|
|
GAS COOKER HOODS
|
POSSIBLE
|
|
VENTILATION
|
POSSIBLE
|
|
OUTDOOR INSTALLATION
|
NO
|
|
INDOOR INSTALLATION
|
NO
|
|
INSTALLATION IN CAVITY
|
POSSIBLE
|
Usual reference and designation
Product marking according to European legislation: EN 1856-2.
T200 P1 W V2 L50010* O with gasket
T600 N1 W V2 L50010 G without gasket
T600 N1 D V2 L50010 G without gasket
T600 N1 D Vm L20010 G without gasket
* The designation may vary according to the quality and thickness of the raw material as indicated in the table below:
Usage
Masonry Chimneys, flue ducts, air vents serving atmospheric, pressurised, blown air, traditional heat generators, kitchen hoods for industrial or domestic use, wood stoves, fireplaces, pellet stoves.
Application
Internal installation.
Available diameters - mm
50 - 60 - 80 - 100 - 110 - 120 - 125 - 130 - 140 - 150- 155 - 160 - 175 - 180 - 200 - 220 - 225 - 230 - 250 -280 - 300 - 350 - 400
