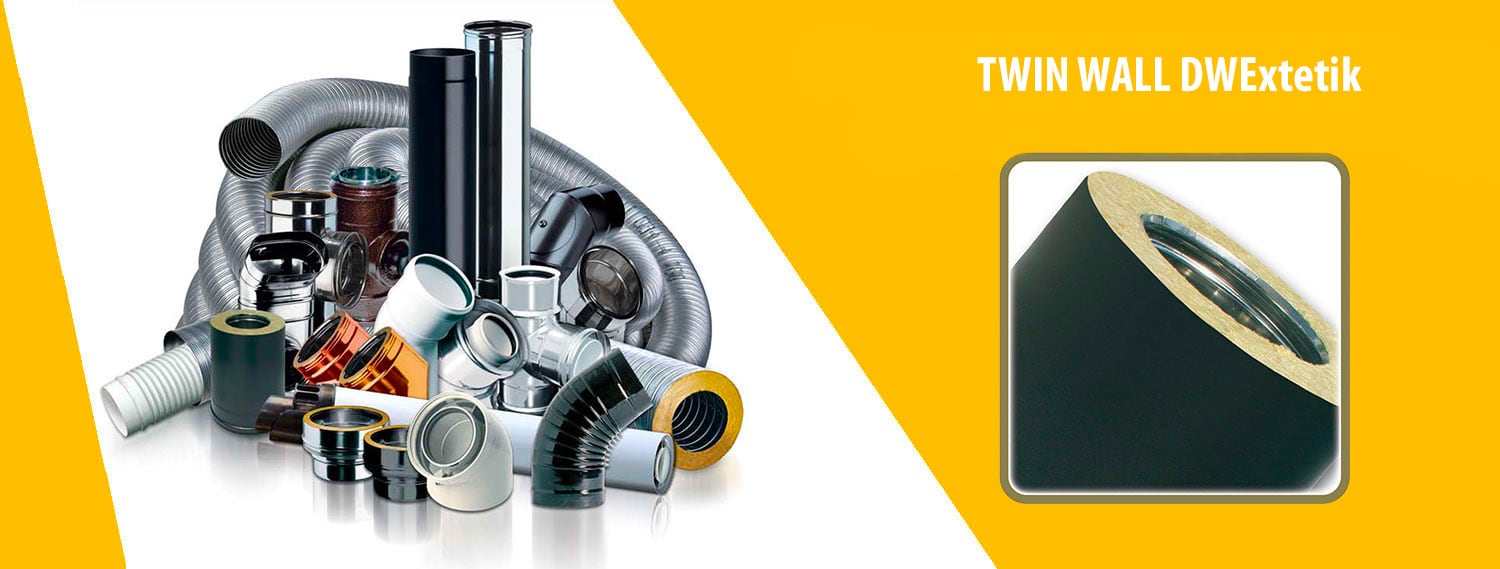

TWIN WALL: DWExtetik
Twin wall flue system in stainless steel internal AISI 316L external black or grey - insulation in rockwool thickness 25 / 50 mm
ON REQUEST
DESIGNATIONS OF USE
Click on the designation to find out the related usage specifications
Designation T600 N1 W V2 L50040 050 G70 (vacuum chimney system)
|
CONDENSATION RESISTANT
|
YES |
|
|
INTERNAL WALL
|
AISI 316L | |
|
OUTER WALL
|
Black or grey AISI 304 |
|
|
INSULATION
|
Rock wool |
|
|
INSULATION THICKNESS
|
25 mm |
|
|
DIAMETERS
|
⌀ 80 ÷ 800 |
|
|
TEMPERATURE LEVEL
|
600 °C
|
|
|
PRESSURE LEVEL
|
N1 = 40 Pa
|
|
 |
GAS APPLIANCES
|
RECOMMENDED
|
 |
GAS CONDENSING APPLIANCES
|
RECOMMENDED
|
 |
OIL APPLIANCES
|
RECOMMENDED
|
 |
WOOD-BURNING APPLIANCES
|
RECOMMENDED
|
 |
PELLET APPLIANCES
|
RECOMMENDED
|
 |
GAS COOKER HOODS
|
POSSIBLE
|
|
VENTILATION
|
POSSIBLE
|
 |
OUTDOOR INSTALLATION
|
RECOMMENDED
|
 |
INDOOR INSTALLATION
|
RECOMMENDED
|
 |
INSTALLATION IN CAVITY
|
POSSIBLE
|
