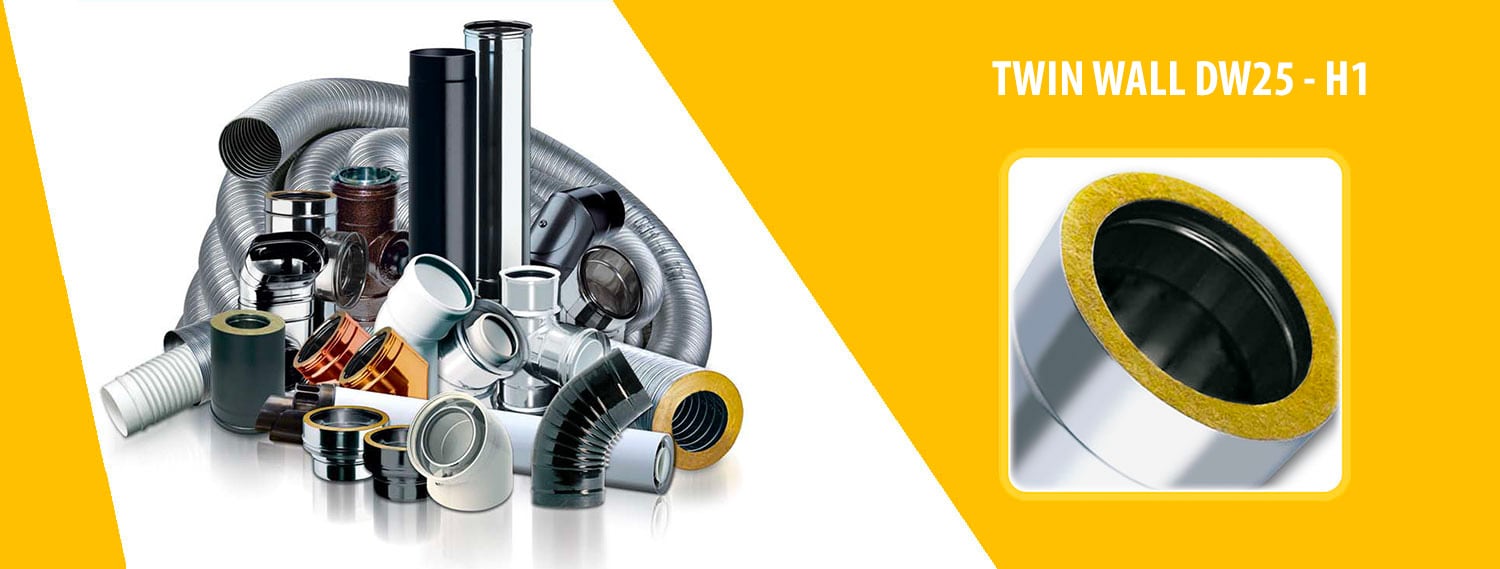

TWIN WALL: DW25 - H1
Twin wall flue system in stainless steel internal AISI 316L external AISI 304 - insulation in rock wool thickness 25 mm
The DW - H1 twin wall flue system is made up of rigid modular components with an internal wall in AISI 316L stainless steel and an external wall in AISI 304 stainless steel with interposed high - density rockwool . The DW - H1 system does not require silicone sealing gaskets as it is equipped with a special male - female joint. The practical joint system guarantees perfect sealing against vibrations and high temperatures with high pressure. The DW - H1 system has a wide range of accessories that allow you to create different types of fireplaces: single flue, flues and chimneys.
Used combined with endothermic engines and cogeneration groups. The DW - H1 twin wall system has the CE marking in accordance with the EN 1856-1 European standard.
DESIGNATIONS OF USE
RESISTANT TO CONDENSATION
|
YES |
|
INTERNAL WALL
|
AISI 316L | |
OUTER WALL
|
AISI 304L |
|
INSULATION
|
Rock wool |
|
INSULATION THICKNESS
|
25 mm |
|
DIAMETERS
|
⌀ 80 ÷ 500 |
|
TEMPERATURE LEVEL
|
600 °C
|
|
PRESSURE LEVEL
|
H1 = 5000 Pa
|
|
![]() |
GAS APPLIANCES
|
RECOMMENDED
|
![]() |
GAS CONDENSING APPLIANCES
|
RECOMMENDED
|
![]() |
OIL APPLIANCES
|
RECOMMENDED
|
![]() |
WOOD - BURNING APPLIANCES
|
RECOMMENDED
|
![]() |
PELLET APPLIANCES
|
RECOMMENDED
|
![]() |
GAS COOKER HOODS
|
POSSIBLE
|
![]() |
VENTILATION
|
POSSIBLE
|
![]() |
OUTDOOR INSTALLATION
|
RECOMMENDED
|
![]() |
INDOOR INSTALLATION
|
RECOMMENDED
|
![]() |
INSTALLATION IN CAVITY
|
POSSIBLE
|
