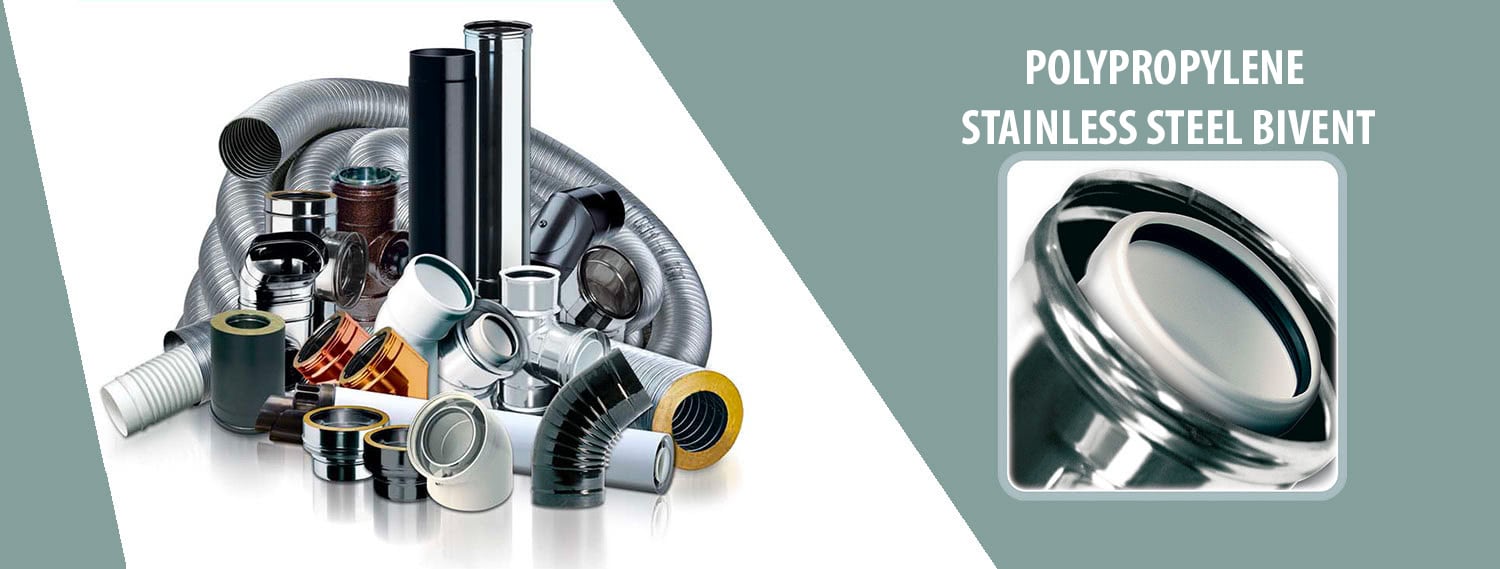

COAXIAL: POLYPROPYLENE STAINLESS STEEL BIVENT
The BIVENT PPs-inox coaxial system is made up of coaxial rigid modular components, manufactured in polypropylene and protected by an external wall in AISI 304 stainless steel, with a 0.4 mm thick BA polished finish, which forms the containment for ventilation simple and/or the combustion air supply of the generator, CE marking according to the EN 14471 standard. The modular components have a classic male-female socket coupling calibrated with a triple lip seal, compliant with the standard European EN 14241-1. The system is suitable for extracting flue gases with a maximum operating temperature of up to 120 °C and a maximum pressure of 5000 Pa.
DESIGNATIONS OF USE
|
CONDENSATION RESISTANT
|
YES |
|
|
INTERNAL WALL
|
PP | |
|
OUTER WALL
|
AISI 304L |
|
|
INSULATION
|
Ventilated air |
|
|
INSULATION THICKNESS
|
NO |
|
|
DIAMETERS
|
⌀ 60 ÷ 160 |
|
|
TEMPERATURE LEVEL
|
120 °C
|
|
|
PRESSURE LEVEL
|
H1 = 5000 Pa
|
|
 |
GAS APPLIANCES
|
NO
|
 |
GAS / DIESEL CONDENSING APPLIANCES
|
RECOMMENDED
|
 |
OIL APPLIANCES
|
NO
|
 |
WOOD-BURNING APPLIANCES
|
NO
|
 |
PELLET APPLIANCES
|
NO
|
 |
GAS COOKER HOODS
|
POSSIBLE
|
|
VENTILATION
|
POSSIBLE
|
 |
OUTDOOR INSTALLATION
|
RECOMMENDED
|
 |
INDOOR INSTALLATION
|
RECOMMENDED
|
 |
INSTALLATION IN CAVITY
|
POSSIBLE
|
Usual eference and designation
Product marking according to European standard
CE 0476 EN 14471.
T120 P1 W 2 O00 LE E UO
Usage
SModular plastic flue systems - flues, chimneys, steel chimneys, air vents - slaved to condensing generators.
Application
Indoor and outdoor installation.
For external installations, use the gaskets also on the external pipe.
Available diameters - mm
60/100 - 80/125
Diameters 100 /160 - 125/200 - 160/250 are available on request.
