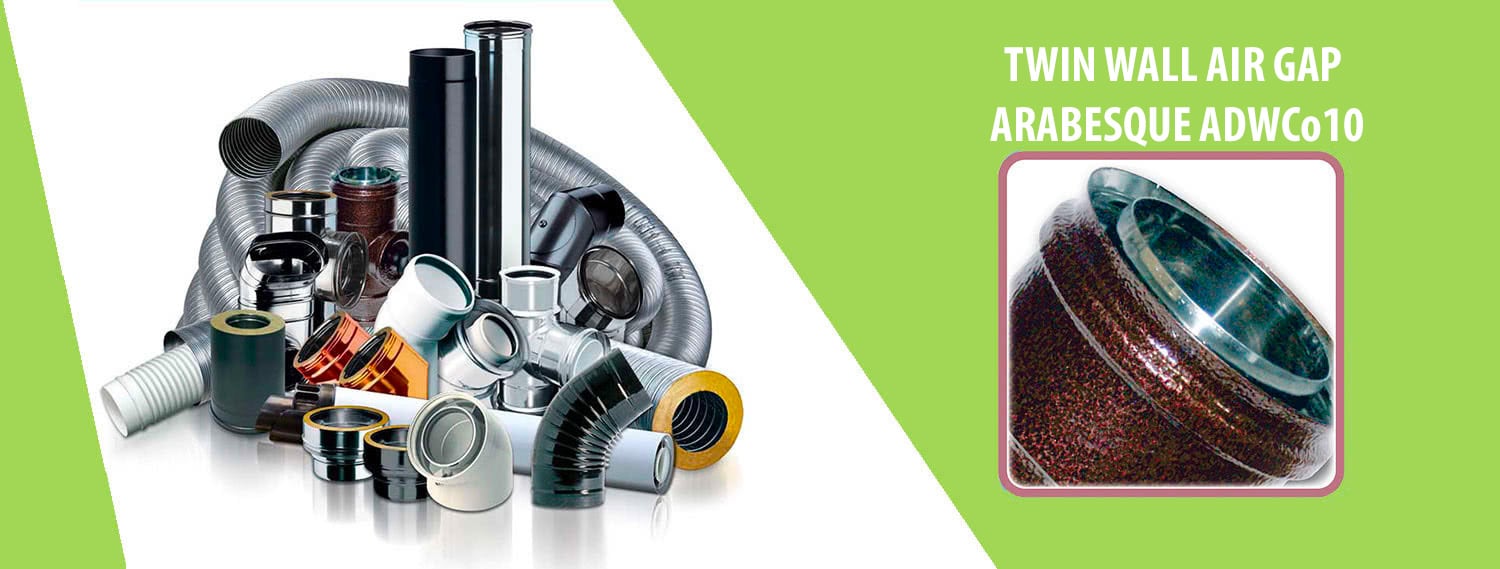

TWIN WALL AIR GAP: ARABESQUE ADWCo10

Twin wall flue system with air gap in internal AISI 316L stainless steel external AISI 304 arabesque - 10 mm gap

The ADWCo10 airgap twin wall flue system is made up of rigid modular components with a BA polished finish, manauactured with an internal wall in austenitic stainless steel AISI 316L BA (EN 1.4404) with a minimum thickness of 0.4 mm and an external arabesque wall, CE marking according to the EN 1856/1-2 European standard. The insulation is made with a 10 mm thick static “ air gap ”. The modular components have a classic male-female socket coupling calibrated for both walls with a triple lip seal to be inserted on the internal wall, and a mechanical joint with a safety clamp. All compliant with European standard EN 14241-1.

DESIGNATIONS OF USE

Click on the designation to find out the related usage specifications
Designation T200 P1 W V2 L50040 O20 (resistance up to 200 Pa with seal)
CONDENSATION RESISTANT

YES

INTERNAL WALL
AISI 316L
OUTER WALL

AISI 304L

INSULATION

Air gap

INSULATION THICKNESS

10 mm

DIAMETERS

⌀ 60 ÷ 230

TEMPERATURE LEVEL
200 °C
PRESSURE LEVEL
P1 = 200 Pa
GAS APPLIANCES
RECOMMENDED
GAS CONDENSING APPLIANCES
RECOMMENDED
OIL APPLIANCES
RECOMMENDED
WOOD-BURNING APPLIANCES
NO
PELLET APPLIANCES
RECOMMENDED
GAS COOKER HOODS
POSSIBLE
VENTILATION
POSSIBLE
OUTDOOR INSTALLATION
RECOMMENDED
INDOOR INSTALLATION
POSSIBLE
INSTALLATION IN CAVITY
POSSIBLE
Designation T600 N1 W V2 L50040 G500M (vacuum chimney system)
CONDENSATION RESISTANT

YES

INTERNAL WALL
AISI 316L
OUTER WALL

AISI 304L

INSULATION

Air Gap

INSULATION THICKNESS

10 mm

DIAMETERS

⌀ 60 ÷ 230

TEMPERATURE LEVEL
600 °C
PRESSURE LEVEL
N1 = 40 Pa
GAS APPLIANCES
RECOMMENDED
GAS CONDENSING APPLIANCES
RECOMMENDED
OIL APPLIANCES
RECOMMENDED
WOOD-BURNING APPLIANCES
NO
PELLET APPLIANCES
RECOMMENDED
GAS COOKER HOODS
POSSIBLE
VENTILATION
POSSIBLE
OUTDOOR INSTALLATION
RECOMMENDED
INDOOR INSTALLATION
POSSIBLE
INSTALLATION IN CAVITY
POSSIBLE

Usual reference and designation

Product marking according to European legislation:
CE 0476 EN 1856-1 / EN 1856-2.
T200 P1 W V2 L50040* O 20 with gasket
T600 N1 W V2 L50040 G500 M

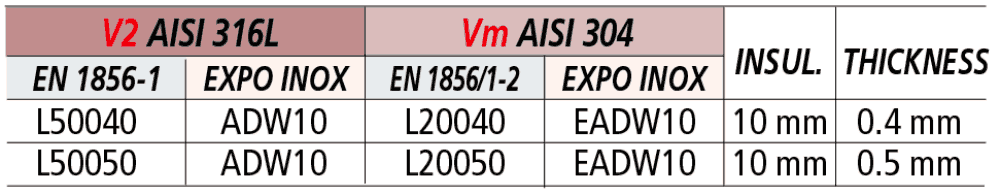

* The designation may vary according to the quality and thickness of the raw material as indicated in the table below:

Usage

Masonry Chimneys, Flue ducts, steel chimneys, air vents serving atmospheric, pressurised, blown air, traditional or condensing heat generators, kitchen hoods for industrial or domestic use, pellet stoves.

Application

Indoor or outdoor installation.

Available diameters - mm

60/80 (ON REQUEST) - 80/100 - 100/120 - 130/150 - 160/180 - 180/200 - 200/220 - 230/250 (ON REQUEST) .

Diameter 250/270 available on request.
