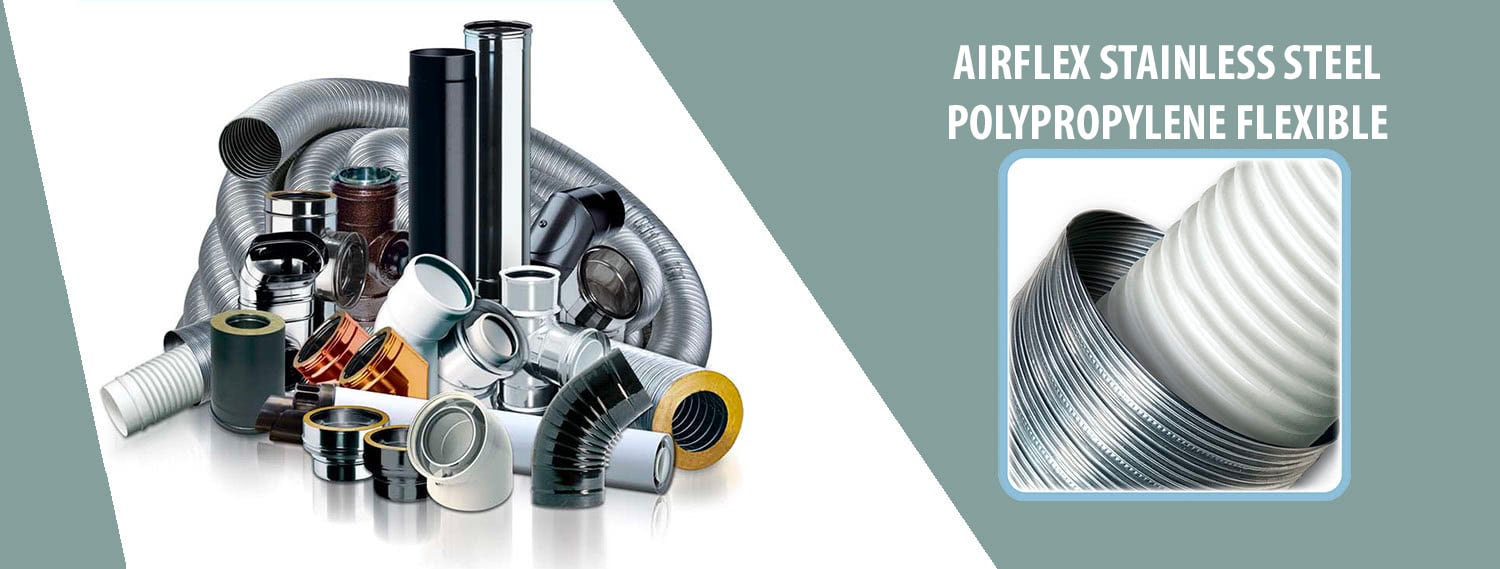

COAXIAL: AIRFLEX STAINLESS STEEL POLYPROPYLENE FLEXIBLE
Coaxial flexible in PPs - external in AISI 304 stainless steel
The Airflex system is made up of coaxial flexible modular components, made of polypropylene and protected by an external wall in AISI 304 flexible stainless steel, with a 0.10 mm thick BA polished finish, which forms the containment for simple ventilation and/or the combustion air adduction of the generator, compliant with CE marking according to the EN 14471 European standards. The system is suitable for extracting flue gases with a maximum operating temperature of up to 120 °C and a maximum pressure of 200 Pa.
ON DEMAND
DESIGNATIONS OF USE
CONDENSATION RESISTANT
|
YES |
|
INTERNAL WALL
|
PP | |
OUTER WALL
|
AISI 304L |
|
INSULATION
|
Ventilated air |
|
INSULATION THICKNESS
|
NO |
|
DIAMETERS
|
⌀ 60 ÷ 100 |
|
TEMPERATURE LEVEL
|
120 °C
|
|
PRESSURE LEVEL
|
P1 = 200 Pa
|
|
![]() |
GAS APPLIANCES
|
NO
|
![]() |
GAS / DIESEL CONDENSING APPLIANCES
|
RECOMMENDED
|
![]() |
OIL APPLIANCES
|
NO
|
![]() |
WOOD-BURNING APPLIANCES
|
NO
|
![]() |
PELLET APPLIANCES
|
NO
|
![]() |
GAS COOKER HOODS
|
POSSIBLE
|
![]() |
VENTILATION
|
POSSIBLE
|
![]() |
OUTDOOR INSTALLATION
|
RECOMMENDED
|
![]() |
INDOOR INSTALLATION
|
RECOMMENDED
|
![]() |
INSTALLATION IN CAVITY
|
POSSIBLE
|
Usual reference and designation
Product marking according to European standard
CE 0476 EN 14471.
T120 P1 W 2 O00 LE E UO
Usage
Modular plastic flue systems - flues, flue ducts, steel chimneys, air vents - slaved to condensing generators.
Application
Indoor and outdoor installation.
For external installations, use the gaskets also on the external pipe.
Available diameters - mm
60/100 - 80/125.
